ACTIVE
Setpoint type |
Factory Programmed |
Setpoint value (°C) |
130, 135 |
Operating temperature range (°C) |
-40 to 150 |
Accuracy over temp range (max) (°C) |
2.3 |
Sensor gain (mV/°C) |
-12.9 |
Output type |
Open drain, Push Pull |
Supply voltage (min) (V) |
1.6 |
Supply voltage (max) (V) |
5.5 |
Supply current (typ) (µA) |
8 |
Number of comparator channels |
1 |
Features |
Built-in hysteresis, Trip-Test Pin |
Rating |
Automotive |
Interface type |
Analog output, Switch |
TI functional safety category |
Functional Safety-Capable |

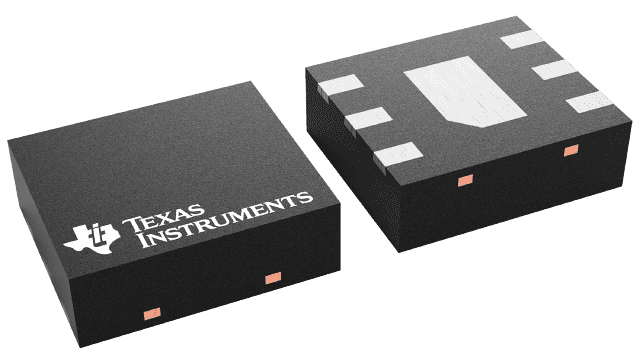

WSON (NGF)-6-5.5 mm² 2.5 x 2.2

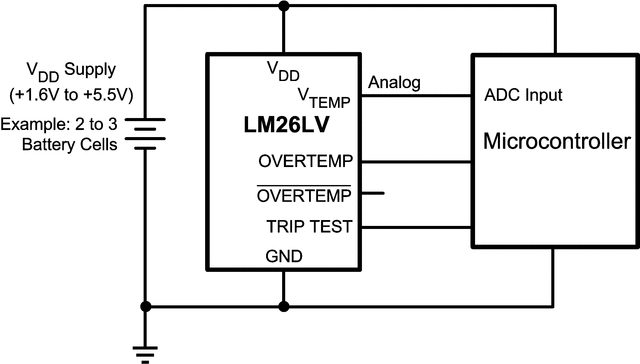

The LM26LV and LM26LV-Q1 are low-voltage, precision, dual-output, low-power temperature switches and temperature sensors. The temperature trip point (TTRIP) can be preset at the factory to any temperature in the range of 0°C to 150°C in 1°C increments. Built-in temperature hysteresis (THYST) keeps the output stable in an environment of temperature instability.
In normal operation the LM26LV or LM26LV-Q1 temperature switch outputs assert when the die temperature exceeds TTRIP. The temperature switch outputs will reset when the temperature falls below a temperature equal to (TTRIP – THYST). The OVERTEMP digital output, is active-high with a push-pull structure, while the OVERTEMP digital output, is active-low with an open-drain structure.

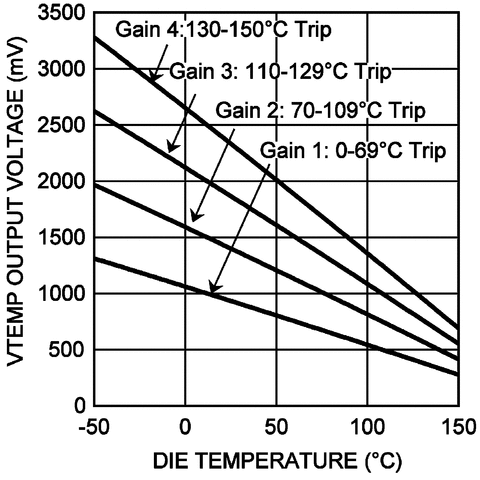

The analog output, VTEMP, delivers an analog output voltage with Negative Temperature Coefficient (NTC).

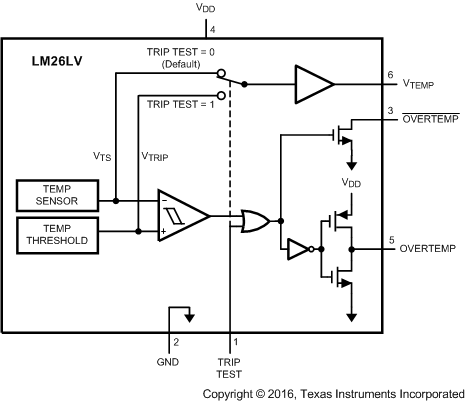

Driving the TRIP_TEST input high causes the digital outputs to be asserted for in-situ verification and causes the threshold voltage to appear at the VTEMP output pin, which could be used to verify the temperature trip point.
The LM26LVs and LM26LV-Q1s low minimum supply voltage makes them ideal for 1.8-V system designs. The wide operating range, low supply current, and excellent accuracy provide a temperature switch solution for a wide range of commercial and industrial applications.
