ACTIVE
Number of channels |
2 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
22 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
6 |
Rail-to-rail |
No |
GBW (typ) (MHz) |
1 |
Slew rate (typ) (V/µs) |
0.5 |
Vos (offset voltage at 25°C) (max) (mV) |
5 |
Iq per channel (typ) (mA) |
1.5 |
Vn at 1 kHz (typ) (nV√Hz) |
30 |
Rating |
Military |
Operating temperature range (°C) |
-55 to 125 |
Offset drift (typ) (µV/°C) |
0 |
Input bias current (max) (pA) |
500000 |
CMRR (typ) (dB) |
90 |
Iout (typ) (A) |
0.045 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
2 |
Input common mode headroom (to positive supply) (typ) (V) |
-3 |
Output swing headroom (to negative supply) (typ) (V) |
1 |
Output swing headroom (to positive supply) (typ) (V) |
-1 |

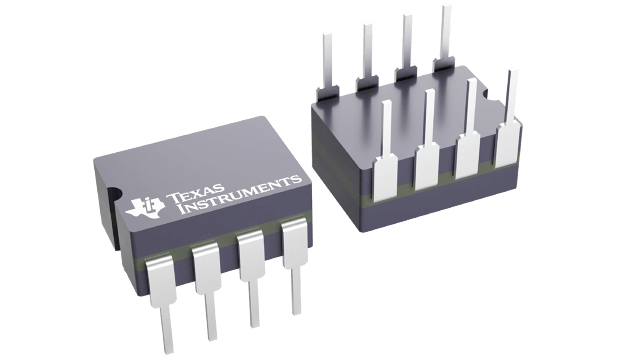

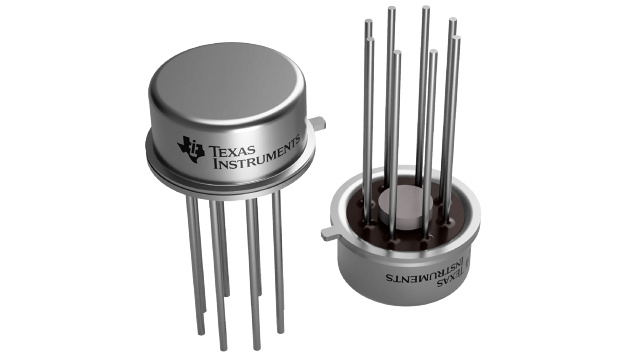

CDIP (NAB)-8-79.9592 mm² 10.16 x 7.87
All trademarks are the property of their respective owners.
The LM1558 is a general purpose dual operational amplifier. The two amplifiers share a common bias network and power supply leads. Otherwise, their operation is completely independent.
