LM139AQML-SP

ACTIVE

Low Power Low Offset Voltage Quad Comparator

Texas Instruments LM139AQML-SP Product Info

1 April 2026 2

Parameters

Number of channels	4
Output type	Open-collector, Open-drain
Propagation delay time (µs)	0.7
Vs (max) (V)	36
Vs (min) (V)	2
Rating	Space
Iq per channel (typ) (mA)	0.2
Vos (offset voltage at 25°C) (max) (mV)	2
Rail-to-rail	In to V-
Operating temperature range (°C)	-55 to 125
Input bias current (±) (max) (nA)	100
VICR (max) (V)	34
VICR (min) (V)	0

Package

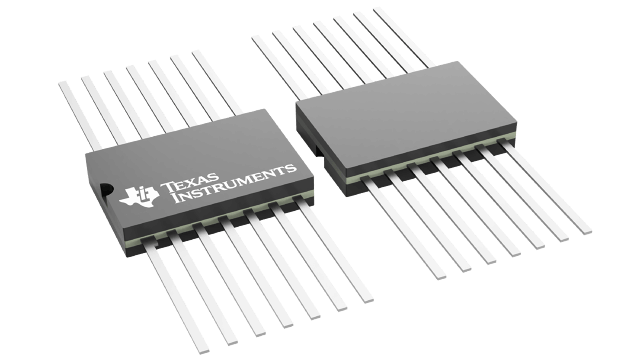

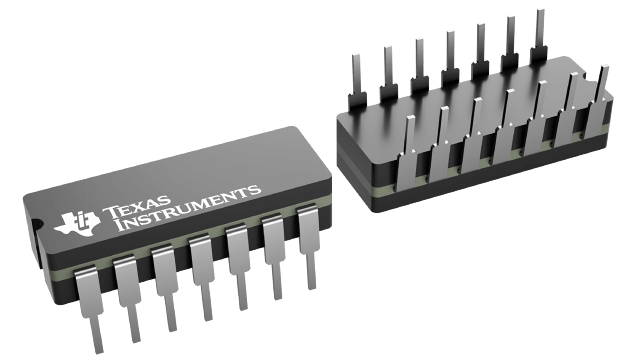

CDIP (J)-14-130.4652 mm² 19.56 x 6.67

Features

Available With Radiation Ensured
- Total Ionizing Dose 100 krad(Si)
- ELDRS Free 100 krad(Si)
Wide Supply Voltage Range
LM139/139A Series 2 to 36 V_DC or ±1 to ±18 V_DC

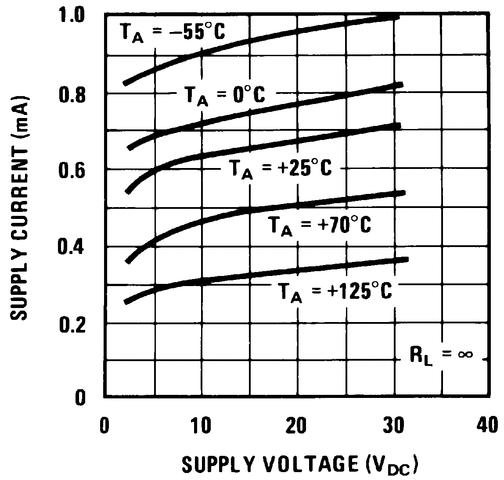

Very Low Supply Current Drain (0.8 mA) — Independent of Supply Voltage
Low Input Biasing Current: 25 nA
Low Input Offset Current: ±5 nA
Offset Voltage: ±1 mV
Input Common-mode Voltage Range Includes GND
Differential Input Voltage Range Equal to the Power Supply Voltage
Low Output Saturation Voltage: 250 mV at 4 mA
Output Voltage Compatible with TTL, DTL, ECL, MOS and CMOS Logic Systems

All trademarks are the property of their respective owners.

Available With Radiation Ensured
- Total Ionizing Dose 100 krad(Si)
- ELDRS Free 100 krad(Si)
Wide Supply Voltage Range
LM139/139A Series 2 to 36 V_DC or ±1 to ±18 V_DC
Very Low Supply Current Drain (0.8 mA) — Independent of Supply Voltage
Low Input Biasing Current: 25 nA
Low Input Offset Current: ±5 nA
Offset Voltage: ±1 mV
Input Common-mode Voltage Range Includes GND
Differential Input Voltage Range Equal to the Power Supply Voltage
Low Output Saturation Voltage: 250 mV at 4 mA
Output Voltage Compatible with TTL, DTL, ECL, MOS and CMOS Logic Systems

All trademarks are the property of their respective owners.

Description

The LM139 series consists of four independent precision voltage comparators with an offset voltage specification as low as 2 mV max for all four comparators. These were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground, even though operated from a single power supply voltage.

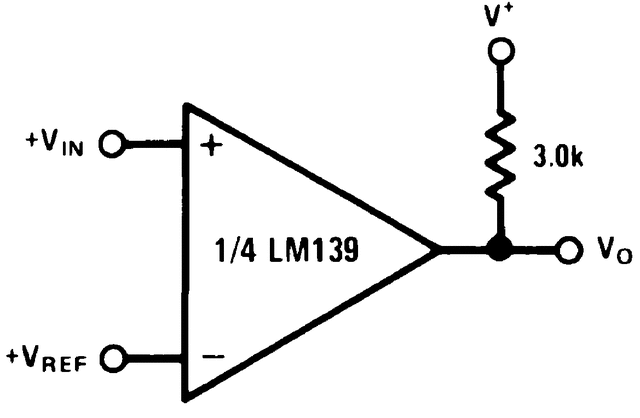

Application areas include limit comparators, simple analog to digital converters; pulse, squarewave and time delay generators; wide range VCO; MOS clock timers; multivibrators and high voltage digital logic gates. The LM139 series was designed to directly interface with TTL and CMOS. When operated from both plus and minus power supplies, they will directly interface with MOS logic— where the low power drain of the LM139/LM139A is a distinct advantage over standard comparators.
