TMUX2889
  • TMUX2889
  • TMUX2889

TMUX2889

ACTIVE

+/- 5-V beyond the supply, 2:1 (SPDT) 2-channel switch with 1.8V compatible logic

Texas Instruments TMUX2889 Product Info

1 April 2026 3

Parameters

Configuration

2:1 SPDT

Number of channels

2

Power supply voltage - single (V)

1.8, 2.5, 3.3, 5

Protocols

Analog Audio

Ron (typ) (Ω)

0.16

CON (typ) (pF)

100

ON-state leakage current (max) (µA)

1

Supply current (typ) (µA)

50

Bandwidth (MHz)

10

Operating temperature range (°C)

-40 to 125

Features

1.8-V compatible control inputs, Fail-safe logic, Over Temperature Protection, Powered-off protection, Supports input voltage beyond supply, Supports negative voltages

Input/output continuous current (max) (A)

1.1

Rating

Catalog

Drain supply voltage (max) (V)

12

Supply voltage (max) (V)

5.5

Package

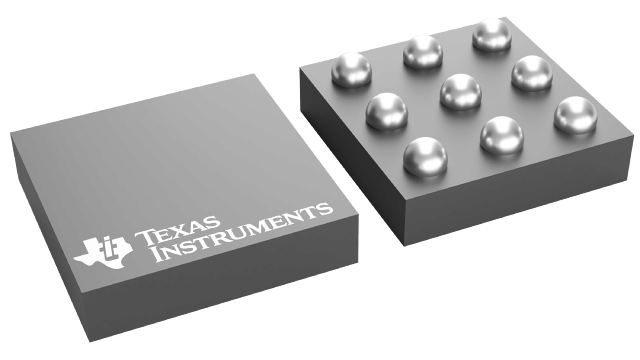

DSBGA (YBH)-9-2.56 mm² 1.6 x 1.6

Features

  • Supply range: 1.8V to 5.5V
  • Beyond the supply signal range:-5.5V to 5.5V
  • High current support: >1A (maximum)
  • Ultra-low on-resistance: 0.2Ω
  • Low on-resistance flatness: 1mΩ
  • Low THD+N: 0.001% (-100dB)
  • –40°C to +125°C operating temperature
  • Powered off protection
  • Over temperature protection
  • 1.8V logic compatible
  • Fail-safe logic
  • Break-before-make switching
  • Supply range: 1.8V to 5.5V
  • Beyond the supply signal range:-5.5V to 5.5V
  • High current support: >1A (maximum)
  • Ultra-low on-resistance: 0.2Ω
  • Low on-resistance flatness: 1mΩ
  • Low THD+N: 0.001% (-100dB)
  • –40°C to +125°C operating temperature
  • Powered off protection
  • Over temperature protection
  • 1.8V logic compatible
  • Fail-safe logic
  • Break-before-make switching

Description

The TMUX2889 is a complementary metal-oxide semiconductor (CMOS) multiplexer with two independently selectable 2:1, single-pole, double-throw (SPDT) switch channels. This device works with a single supply (1.6V to 5.5V), but can pass bidirectional analog and digital signals beyond the supply from -5.5V to 5.5V.

The TMUX2889 also features powered off protection up to ±5.5V, which isolates the switch even when there is no supply voltage present (VDD = 0V). Without this protection feature, any voltage on the switch can back-power the supply rail through an internal ESD diode and cause potential damage to the rest of the system.

With 0.001% THD+N and 1mΩ RON-flatness, the TMUX2889 is designed for passing precision analog and audio signals without adding distortion.
