LM136-5.0QML
  • LM136-5.0QML
  • LM136-5.0QML
  • LM136-5.0QML

LM136-5.0QML

ACTIVE

5.0V Reference Diode

Texas Instruments LM136-5.0QML Product Info

1 April 2026 2

Parameters

Rating

Military

VO (V)

5

Initial accuracy (max) (%)

1

Iz for regulation (min) (µA)

600

VO adj (min) (V)

4

VO adj (max) (V)

6

Reference voltage (V)

adjustable

Temp coeff (max) (ppm/°C)

40

Operating temperature range (°C)

-55 to 125

Iout/Iz (max) (mA)

10

Package

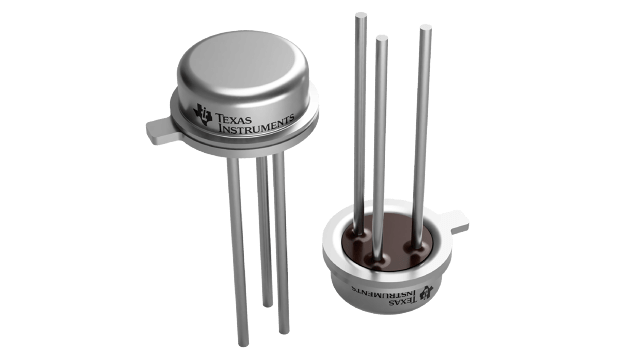

TO-CAN (NDV)-3-34.8704 mm² 6.41 x 5.44

Features

  • Adjustable 4V to 6V
  • Low Temperature Coefficient
  • Wide Operating Current of 600 μA to 10 mA
  • 0.6Ω Dynamic Impedance
  • Ensured Temperature Stability
  • Easily Trimmed for Minimum Temperature Drift
  • Fast Turn-On
  • Three Lead Transistor Package

All trademarks are the property of their respective owners.

  • Adjustable 4V to 6V
  • Low Temperature Coefficient
  • Wide Operating Current of 600 μA to 10 mA
  • 0.6Ω Dynamic Impedance
  • Ensured Temperature Stability
  • Easily Trimmed for Minimum Temperature Drift
  • Fast Turn-On
  • Three Lead Transistor Package

All trademarks are the property of their respective owners.

Description

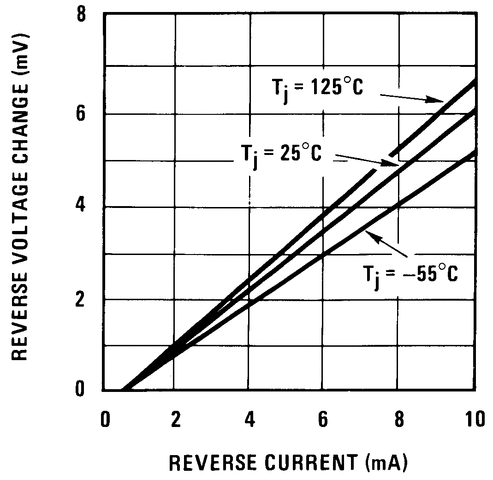

The LM136A-5.0QML/LM136-5.0QML integrated circuits are precision 5.0V shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient 5.0V zener with 0.6Ω dynamic impedance. A third terminal on the LM136-5.0 allows the reference voltage and temperature coefficient to be trimmed easily.

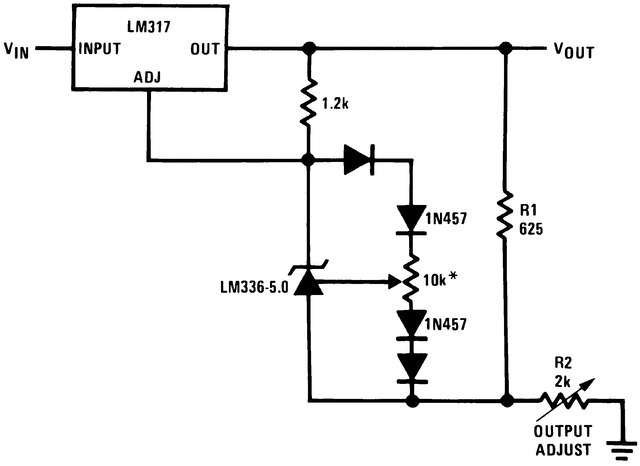

The LM136-5.0 series is useful as a precision 5.0V low voltage reference for digital voltmeters, power supplies or op amp circuitry. The 5.0V makes it convenient to obtain a stable reference from low voltage supplies. Further, since the LM136-5.0 operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
