SN74ACT238
  • SN74ACT238
  • SN74ACT238
  • SN74ACT238

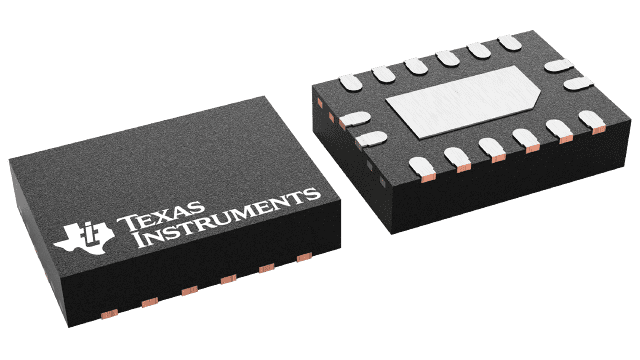

SN74ACT238

ACTIVE

4.5V to 5.5V 3-line to 8-line inverting and noninverting decoder and demultiplexer

Texas Instruments SN74ACT238 Product Info

1 April 2026 0

Parameters

Technology family

ACT

Number of channels

1

Operating temperature range (°C)

-40 to 125

Rating

Catalog

Supply current (max) (µA)

2

Package

TSSOP (PW)-16-32 mm² 5 x 6.4

Features

  • Operating voltage range of 4.5V to 5.5V
  • TTL-compatible inputs
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Fast operation with delay of 10.9ns max
  • Operating voltage range of 4.5V to 5.5V
  • TTL-compatible inputs
  • Continuous ±24mA output drive at 5V
  • Supports up to ±75mA output drive at 5Vin short bursts
  • Drives 50Ω transmission lines
  • Fast operation with delay of 10.9ns max

Description

The SN74ACT238 is a three to eight decoder with one standard output strobe (G2) and two active low output strobes (G1 and G0). When the channel strobe inputs are all active, only the selected output is high while all others are low. When any strobe input is inactive, the outputs are all forced into the low state.

The SN74ACT238 is a three to eight decoder with one standard output strobe (G2) and two active low output strobes (G1 and G0). When the channel strobe inputs are all active, only the selected output is high while all others are low. When any strobe input is inactive, the outputs are all forced into the low state.
