LDC5072-Q1
  • LDC5072-Q1
  • LDC5072-Q1

LDC5072-Q1

ACTIVE

Automotive inductive position sensor front end with sine/cosine interface

Texas Instruments LDC5072-Q1 Product Info

1 April 2026 0

Parameters

Rating

Automotive

TI functional safety category

Functional Safety-Compliant

Operating temperature range (°C)

-40 to 160

Package

TSSOP (PW)-16-32 mm² 5 x 6.4

Features

  • AEC-Q100 qualified with the following results:
    • Device temperature grade 0: –40°C to +160°C ambient operating temperature
  • Integrated analog front-end IC for contact-less, inductive position sensors for absolute rotary position from 0° to 360°
  • Removes the need for magnets, lowering system cost
  • Supports operation in harsh environments; immune to stray magnetic fields, dirt, and contamination
  • High resolution and accuracy of ≤ 1 degree at rotational speeds up to 480,000 RPM
  • Differential signal paths with sine and cosine outputs supporting a wide dynamic input range
  • 5-V and 3.3-V input supply operating modes
  • Integrated LC oscillator in the 2.4-MHz to 5-MHz band to excite the inductive sensor coil
  • Differential output drivers with high-voltage protection and large capacitive load capability
  • Automatic and manual gain control to maximize dynamic range of output drivers
  • Functional Safety-Compliant
    • Developed for functional safety applications
    • Documentation available to aid ISO 26262 system design
    • Systematic capability up to ASIL C(D)
    • Hardware capability up to ASIL C
  • Extensive IC, sensor input, output, and supply pin diagnostics
  • Reverse voltage and overvoltage protection on input supply and output pins from –15 V to 30 V
  • Supports redundant mode for functional safety
  • AEC-Q100 qualified with the following results:
    • Device temperature grade 0: –40°C to +160°C ambient operating temperature
  • Integrated analog front-end IC for contact-less, inductive position sensors for absolute rotary position from 0° to 360°
  • Removes the need for magnets, lowering system cost
  • Supports operation in harsh environments; immune to stray magnetic fields, dirt, and contamination
  • High resolution and accuracy of ≤ 1 degree at rotational speeds up to 480,000 RPM
  • Differential signal paths with sine and cosine outputs supporting a wide dynamic input range
  • 5-V and 3.3-V input supply operating modes
  • Integrated LC oscillator in the 2.4-MHz to 5-MHz band to excite the inductive sensor coil
  • Differential output drivers with high-voltage protection and large capacitive load capability
  • Automatic and manual gain control to maximize dynamic range of output drivers
  • Functional Safety-Compliant
    • Developed for functional safety applications
    • Documentation available to aid ISO 26262 system design
    • Systematic capability up to ASIL C(D)
    • Hardware capability up to ASIL C
  • Extensive IC, sensor input, output, and supply pin diagnostics
  • Reverse voltage and overvoltage protection on input supply and output pins from –15 V to 30 V
  • Supports redundant mode for functional safety

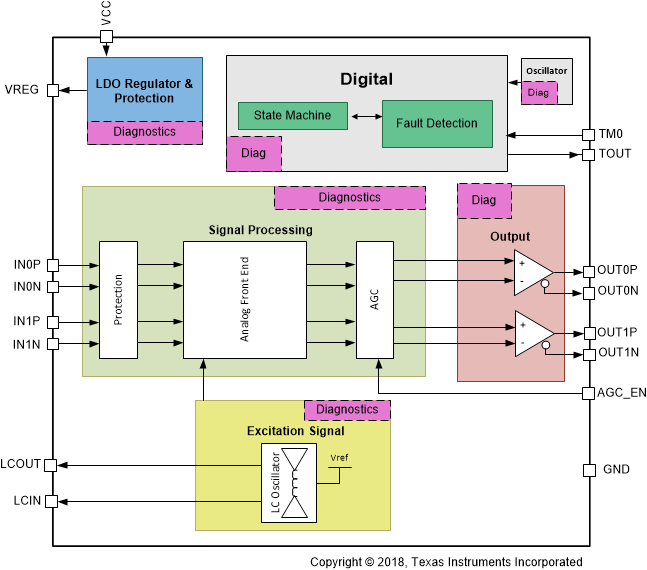

Description

The LDC5072-Q1 IC is an analog front-end for contact-less, inductive position sensors targeted for absolute rotary position in automotive and industrial applications. The LDC5072-Q1 excites a coil that is typically printed on a printed circuit board (PCB). The excitation is coupled back into two sets of receiver coils on the same PCB using a conductive target that is placed in close proximity of the PCB. The conductive target can also be a pattern printed on another PCB. The coil PCB stays stationary and the target moves with the motor, actuator, or valve. The excitation coil generates a secondary voltage on the receiver coils depending on the position of the target relative to the receiver coils. A signal representation of the position is obtained by reading in the voltages from the receiver coils, processing it, and giving analog outputs representing the Sine and Cosine components of the position of the target.

The LDC5072-Q1 IC is an analog front-end for contact-less, inductive position sensors targeted for absolute rotary position in automotive and industrial applications. The LDC5072-Q1 excites a coil that is typically printed on a printed circuit board (PCB). The excitation is coupled back into two sets of receiver coils on the same PCB using a conductive target that is placed in close proximity of the PCB. The conductive target can also be a pattern printed on another PCB. The coil PCB stays stationary and the target moves with the motor, actuator, or valve. The excitation coil generates a secondary voltage on the receiver coils depending on the position of the target relative to the receiver coils. A signal representation of the position is obtained by reading in the voltages from the receiver coils, processing it, and giving analog outputs representing the Sine and Cosine components of the position of the target.
