Texas Instruments ISOW7742 Product Info

Parameters

Rating	Catalog
Isolation rating	Basic, Reinforced
Number of channels	4
Forward/reverse channels	2 forward / 2 reverse
Data rate (max) (Mbps)	100
Working isolation voltage (VIOWM) (Vrms)	1000
Surge isolation voltage (VIOSM) (VPK)	10000
Transient isolation voltage (VIOTM) (VPK)	7071
Withstand isolation voltage (VISO) (Vrms)	5000
CMTI (min) (kV/µs)	85
Operating temperature range (°C)	-40 to 125
Type	Digital isolator

Package

SOIC (DFM)-20-132.149 mm² 12.83 x 10.3

Features

100 Mbps data rate
Integrated DC-DC converter with low-emissions, low-noise
- Emission optimized to meet CISPR 32 and EN 55032 Class B with >5 dB margin on 2 layer board
- Low frequency power converter at 25 MHz enabling low noise performance
- Low output ripple: 24 mV
High efficiency output power
- Efficiency at max load: 46%
- Up to 0.55-W output power
- V ISOOUT accuracy of 5%
- 5 V to 5 V: Max available load current = 110 mA
- 5 V to 3.3 V: Max available load current = 140 mA
- 3.3 V to 3.3 V: Max available load current = 60 mA
Independent power supply for channel isolator & power converter
- Logic supply (V IO): 1.71-V to 5.5-V
- Power converter supply (V DD): 3-V to 5.5-V
Robust electromagnetic compatibility (EMC)
- System-level ESD, EFT, and surge immunity
- ±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier
Reinforced and Basic isolation options
High CMTI: 100-kV/µs (typical)
Safety Related Certifications:
- VDE reinforced and basic insulation per DIN VDE V 0884-11:2017-01
- UL 1577 component recognition program
- IEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1-2011 certifications
- ISOW774xB devices are planned
Extended temperature range: –40°C to +125°C

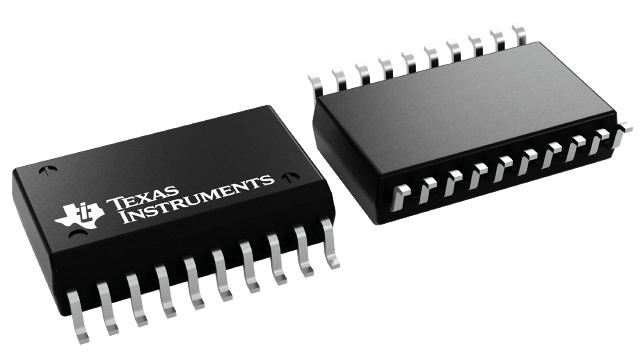

20-pin wide body SOIC package

100 Mbps data rate
Integrated DC-DC converter with low-emissions, low-noise
- Emission optimized to meet CISPR 32 and EN 55032 Class B with >5 dB margin on 2 layer board
- Low frequency power converter at 25 MHz enabling low noise performance
- Low output ripple: 24 mV
High efficiency output power
- Efficiency at max load: 46%
- Up to 0.55-W output power
- V ISOOUT accuracy of 5%
- 5 V to 5 V: Max available load current = 110 mA
- 5 V to 3.3 V: Max available load current = 140 mA
- 3.3 V to 3.3 V: Max available load current = 60 mA
Independent power supply for channel isolator & power converter
- Logic supply (V IO): 1.71-V to 5.5-V
- Power converter supply (V DD): 3-V to 5.5-V
Robust electromagnetic compatibility (EMC)
- System-level ESD, EFT, and surge immunity
- ±8 kV IEC 61000-4-2 contact discharge protection across isolation barrier
Reinforced and Basic isolation options
High CMTI: 100-kV/µs (typical)
Safety Related Certifications:
- VDE reinforced and basic insulation per DIN VDE V 0884-11:2017-01
- UL 1577 component recognition program
- IEC 62368-1, IEC 61010-1, IEC 60601-1 and GB 4943.1-2011 certifications
- ISOW774xB devices are planned
Extended temperature range: –40°C to +125°C
20-pin wide body SOIC package

Description

The ISOW77xx family of devices are galvanically-isolated quad-channel digital isolator with an integrated high-efficiency power converter with low emissions. The integrated DC-DC converter provides up to 550 mW of isolated power, eliminating the need for a separate isolated power supply in space-constrained isolated designs.
