ISO124

ACTIVE

±10-V input, precision voltage sensing low-cost isolated amplifier

Texas Instruments ISO124 Product Info

1 April 2026 5

Parameters

Device type

Voltage sensing

Peak-to-peak input voltage range (V)

10

Working isolation voltage (VIOWM) (Vrms)

1500

Input offset (±) (max) (V)

0.05

Input offset drift (±) (typ) (µV/°C)

200

Rating

Catalog

Operating temperature range (°C)

-25 to 85

Package

PDIP (NVF)-8-188.047 mm² 20.005 x 9.4

Features

  • 100% Tested for High-Voltage Breakdown
  • Rated 1500 Vrms
  • High IMR: 140 dB at 60 Hz
  • Maximum Nonlinearity: 0.010%
  • Bipolar Operation: VO = ±10 V
  • Packages: PDIP-16 and SOIC-28
  • Ease of Use: Fixed Unity Gain Configuration
  • Supply Range: ±4.5-V to ±18-V
  • 100% Tested for High-Voltage Breakdown
  • Rated 1500 Vrms
  • High IMR: 140 dB at 60 Hz
  • Maximum Nonlinearity: 0.010%
  • Bipolar Operation: VO = ±10 V
  • Packages: PDIP-16 and SOIC-28
  • Ease of Use: Fixed Unity Gain Configuration
  • Supply Range: ±4.5-V to ±18-V

Description

The ISO124 is a precision isolation amplifier incorporating a novel duty cycle modulation-demodulation technique. The signal is transmitted digitally across a 2-pF differential capacitive barrier. With digital modulation, the barrier characteristics do not affect signal integrity, thus resulting in excellent reliability and good high-frequency transient immunity across the barrier. Both barrier capacitors are imbedded in the plastic body of the package.

The ISO124 is easy to use. No external components are required for operation. The key specifications are 0.010% maximum nonlinearity, 50-kHz signal bandwidth, and 200-µV/°C VOS drift. A power supply range of ±4.5 V to ±18 V, and quiescent currents of ±5 mA on VS1 and ±5.5 mA on VS2 make the ISO124 device a good choice for a wide range of applications.

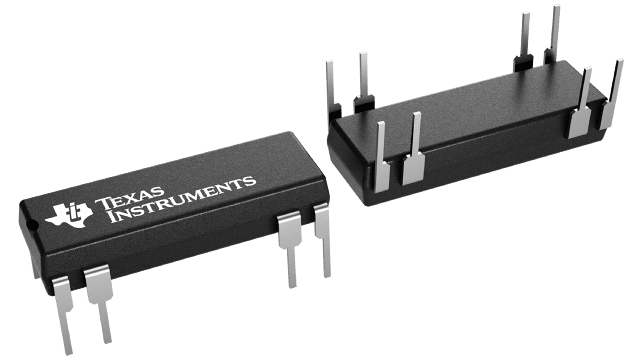

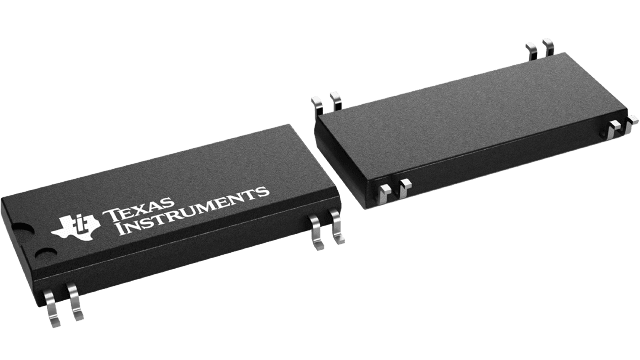

The ISO124 is available in 16-pin PDIP and 28-lead SOIC plastic surface-mount packages.
