INA254
  • INA254
  • INA254

INA254

ACTIVE

80-V, bidirectional ±75-A zero-drift current-sense amplifier with PWM rejection and shunt resistor

Texas Instruments INA254 Product Info

1 April 2026 4

Parameters

Common-mode voltage (max) (V)

80

Common-mode voltage (min) (V)

-4

Input offset (±) (max) (µV)

62.5, 62500

Gain error (%)

0.5

Gain error drift (±) (max) (ppm/°C)

45

CMRR (min) (dB)

120

Bandwidth (kHz)

350

Supply voltage (max) (V)

5.5

Supply voltage (min) (V)

2.7

Iq (max) (mA)

2.4

Features

Bidirectional, Enhanced PWM Rejection, Integrated Shunt, Low-side Capable

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

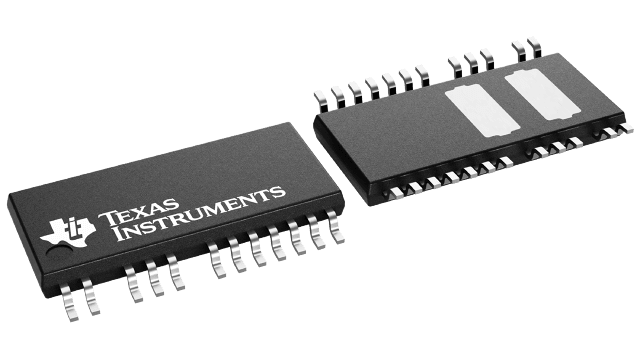

HTSSOP (PWA)-24-62.08 mm² 9.7 x 6.4

Features

  • Precision integrated 400-µΩ shunt resistor
    • Continuous ±75 A at 25°C
    • Continuous ±50 A from –40°C to +85°C
    • Shunt resistor tolerance: 0.5% (maximum)
    • Low drift: 10 ppm/°C (0°C to 125°C)
    • Low inductance: 2 nH
  • High accuracy
    • System gain error: 0.5% (maximum)
    • System gain drift: 45 ppm/°C (maximum)
    • Input offset current: ±62.5 mA (maximum)
    • Input offset drift: 625 µA/°C (maximum)
    • DC CMRR > 120-dB
    • 90-dB AC CMRR at 50 kHz
  • Enhanced PWM rejection
  • Wide common-mode range: –4 V to +80 V
  • Available gains: 20 mV/A, 40 mV/A, and 75 mV/A
  • Precision integrated 400-µΩ shunt resistor
    • Continuous ±75 A at 25°C
    • Continuous ±50 A from –40°C to +85°C
    • Shunt resistor tolerance: 0.5% (maximum)
    • Low drift: 10 ppm/°C (0°C to 125°C)
    • Low inductance: 2 nH
  • High accuracy
    • System gain error: 0.5% (maximum)
    • System gain drift: 45 ppm/°C (maximum)
    • Input offset current: ±62.5 mA (maximum)
    • Input offset drift: 625 µA/°C (maximum)
    • DC CMRR > 120-dB
    • 90-dB AC CMRR at 50 kHz
  • Enhanced PWM rejection
  • Wide common-mode range: –4 V to +80 V
  • Available gains: 20 mV/A, 40 mV/A, and 75 mV/A

Description

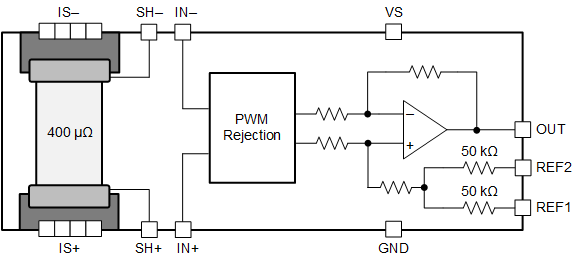

The INA254 is a voltage-output, current sense amplifier with a 400-µΩ integrated shunt resistor. The INA254 is designed to monitor bidirectional currents over a wide common-mode range from –4 V to +80 V, independent of the supply voltage. Three fixed gains are available: 20 mV/A, 40 mV/A, and 75 mV/A. The integration of the precision resistor with a zero-drift chopped amplifier provides calibration equivalent measurement accuracy, ultra-low temperature drift performance of ±45 ppm/°C (maximum), and an optimized Kelvin layout for the sensing resistor.

The INA254 is designed with enhanced PWM rejection circuitry to suppress large (dv/dt) signals that enable real-time continuous current measurements. The measurements are critical for in-line current measurements in a motor-drive application, and for solenoid valve control applications.

This device operates from a single 2.7-V to 5.5-V power supply, drawing a maximum of 2.4 mA of supply current. All gain versions are specified over the extended operating temperature range (–40°C to +125°C), and are available in a 24-pin HTSSOP package.
