0
ACTIVE
Common-mode voltage (max) (V) |
26 |
Common-mode voltage (min) (V) |
0 |
Digital interface |
I2C, SMBus |
Resolution (Bits) |
12 |
Input offset (±) (max) (µV) |
50, 100 |
Input offset drift (±) (max) (µV/°C) |
0.5 |
Input offset drift (±) (typ) (µV/°C) |
0.1 |
Voltage gain (V/V) |
0.125, 0.25, 0.5, 1 |
CMRR (min) (dB) |
100 |
Supply voltage (max) (V) |
5.5 |
Supply voltage (min) (V) |
3 |
Iq (max) (mA) |
1 |
Gain error (%) |
0.3, 0.5 |
Gain error drift (±) (max) (ppm/°C) |
83, 167 |
Features |
Bidirectional, Intergrated Power Monitor, Programmable Gain |
Number of channels |
1 |
Power measurement accuracy (%) |
0.8, 1 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 125 |
SOIC (D)-8-29.4 mm² 4.9 x 6

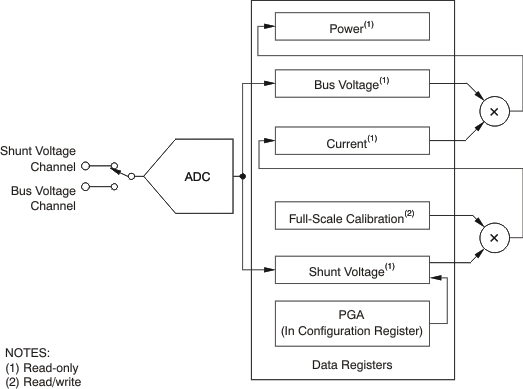

The INA219 is a current shunt and power monitor with an I2C- or SMBUS-compatible interface. The device monitors both shunt voltage drop and bus supply voltage, with programmable conversion times and filtering. A programmable calibration value, combined with an internal multiplier, enables direct readouts of current in amperes. An additional multiplying register calculates power in watts. The I2C- or SMBUS-compatible interface features 16 programmable addresses.
The INA219 is available in two grades: A and B. The B grade version has higher accuracy and higher precision specifications.
The INA219 senses across shunts on buses that can vary from 0 to 26 V. The device uses a single 3- to 5.5-V supply, drawing a maximum of 1 mA of supply current. The INA219 operates from 40°C to 125°C.
