ACTIVE
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
35 |
GBW (typ) (MHz) |
200 |
Slew rate (typ) (V/µs) |
80 |
Rail-to-rail |
No |
Vos (offset voltage at 25°C) (max) (mV) |
2 |
Iq per channel (typ) (mA) |
11 |
Features |
Burr-Brown™ Audio, Shutdown |
THD + N at 1 kHz (typ) (%) |
0.000025 |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |
Iout (typ) (A) |
0.085 |
Architecture |
Voltage FB |
CMRR (typ) (dB) |
100 |
Input bias current (max) (pA) |
11500000 |

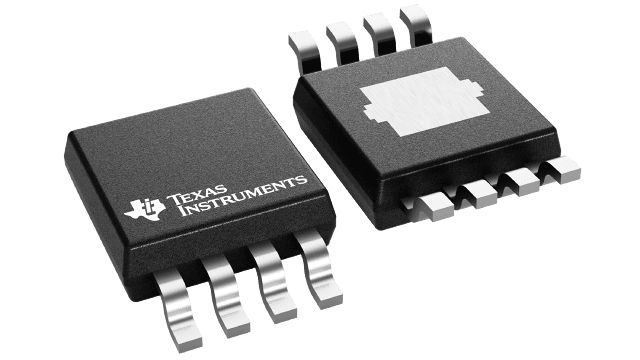

HVSSOP (DGN)-8-14.7 mm² 3 x 4.9
The OPA1633 is a fully differential amplifier (FDA) designed to drive high-performance audio analog-to-digital converters (ADCs) or as a predriver for class-D amplifiers.
The OPA1633 delivers excellent audio quality, very low noise, a large output voltage swing, and a high current drive. The OPA1633 has an excellent gain bandwidth of 200 MHz and a very fast slew rate of 80 V/µs that helps produce exceptionally low distortion. A very low input voltage noise of 1.1 nV/√Hz further provides maximum signal-to-noise ratio and dynamic range.
The flexibility of the fully differential architecture allows for easy implementation of a single-ended to fully differential output conversion. Differential output reduces even-order harmonics and minimizes common-mode noise interference. The OPA1633 provides excellent performance when used to drive high-performance audio ADCs such as the PCM1804. A shutdown feature is included to save power when the device is not in use.
The OPA1633 is characterized to operate from −40°C to +85°C and available in an SO-8 package and a thermally enhanced, HVSSOP PowerPAD™ integrated circuit package.
