ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
12 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.7 |
Vos (offset voltage at 25°C) (max) (mV) |
0.26 |
Offset drift (typ) (µV/°C) |
1 |
GBW (typ) (MHz) |
2.5 |
Slew rate (typ) (V/µs) |
1 |
Rail-to-rail |
In, Out |
Iq per channel (typ) (mA) |
0.8 |
Vn at 1 kHz (typ) (nV√Hz) |
9 |
CMRR (typ) (dB) |
130 |
Rating |
Space |
Operating temperature range (°C) |
-55 to 125 |
Iout (typ) (A) |
0.042 |
Architecture |
CMOS |
Input common mode headroom (to negative supply) (typ) (V) |
-0.2 |
Input common mode headroom (to positive supply) (typ) (V) |
0.2 |
Output swing headroom (to negative supply) (typ) (V) |
30 |
Output swing headroom (to positive supply) (typ) (V) |
40 |
THD + N at 1 kHz (typ) (%) |
0.02 |

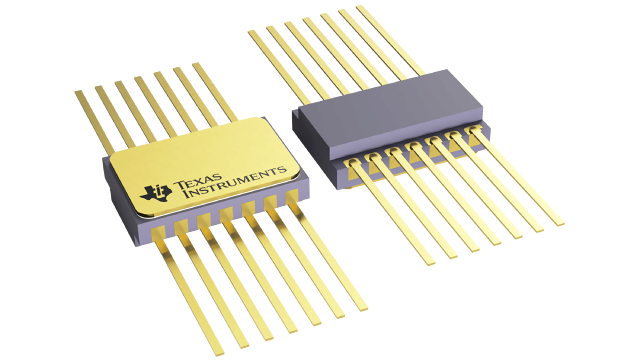

CFP (HBH)-14-63.0504 mm² 9.73 x 6.48
The LMP7704-SP is a precision amplifier with low input bias, low offset voltage, 2.5MHz gain bandwidth product, and a wide supply voltage. The device is radiation hardened and operates in the military temperature range of −55°C to +125°C.
The high dc precision of this amplifier, specifically the low offset voltage of ±60µV and ultra-low input bias of ±500fA, makes this device an excellent choice for interfacing with precision sensors with high output impedances. This amplifier can be configured for transducer, bridge, strain gauge, and transimpedance amplification.
