ACTIVE
Number of channels |
1 |
Vrwm (V) |
24 |
Bi-/uni-directional |
Bi-directional |
Package name |
SOD523 |
Peak pulse power (8/20 μs) (max) (W) |
102 |
IO capacitance (typ) (pF) |
1.6 |
IEC 61000-4-2 contact (±V) |
22000 |
IEC 61000-4-5 (A) |
2.8 |
Features |
ESD Protection |
Clamping voltage (V) |
41.5 |
Dynamic resistance (typ) |
0.6 |
Interface type |
General purpose, LIN |
Breakdown voltage (min) (V) |
25.5 |
IO leakage current (max) (nA) |
50 |
Rating |
Automotive |
Operating temperature range (°C) |
-55 to 150 |
SOT-5X3 (DYA)-2-1.28 mm² 1.6 x 0.8

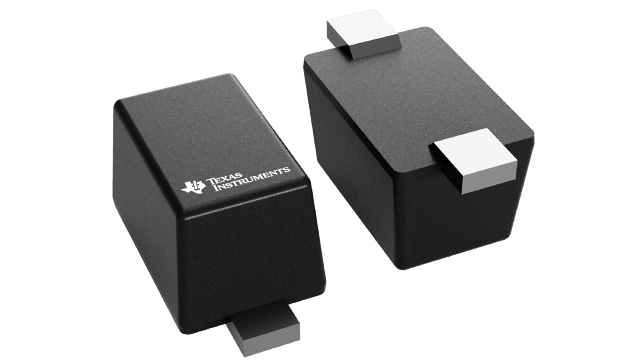

The ESD1LIN24-Q1, ESD751-Q1, and ESD761-Q1 are single-channel low capacitance bidirectional ESD protection devices for local interconnect network (LIN). These devices are rated to dissipate contact ESD strikes beyond the maximum level specified in the IEC 61000-4-2 international standard (±30kV Contact, ±30kV Airgap), (±22kV Contact, ±22kV Airgap), and (±15kV Contact, ±15kV Airgap), respectively. The low dynamic resistance and low clamping voltage help protect systems against transient events. This protection is key as automotive systems require a high level of robustness and reliability when they control safety devices.
The ESD1LIN24-Q1 and ESD751-Q1 are both offered in leaded packages for easy flow through routing.
