ESD441

ACTIVE

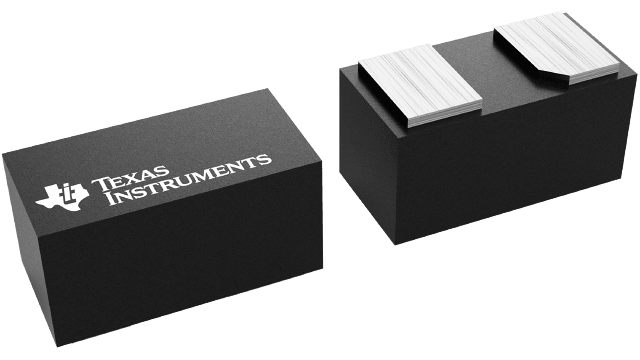

1-pF, 5.5-V, 30-KV ESD protection device in 0201 package

Texas Instruments ESD441 Product Info

1 April 2026 6

Parameters

Number of channels

1

Vrwm (V)

5.5

Bi-/uni-directional

Uni-Directional

Package name

DFN0603

Peak pulse power (8/20 μs) (max) (W)

45

IO capacitance (typ) (pF)

1

IEC 61000-4-2 contact (±V)

30000

IEC 61000-4-5 (A)

6

Features

ESD Protection

Clamping voltage (V)

7.6

Dynamic resistance (typ)

0.1

Interface type

GPIO, General purpose, HDMI 2.0, MHL, USB 2.0, USB Type-C

Breakdown voltage (min) (V)

6

IO leakage current (max) (nA)

50

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Package

X1SON (DPY)-2-0.6 mm² 1 x 0.6

Features

  • IEC 61000-4-2 level 4 ESD protection
    • ±30kV contact discharge
    • ±30kV air gap discharge
  • IEC 61000-4-5 surge protection
    • 6A (8/20µs)
  • IO capacitance:
    • 1pF (typical)
  • DC breakdown voltage: 7V (typical)
  • Ultra low leakage current: 50nA (maximum)
  • Extremely low ESD clamping voltage
    • 7.6V at 16A TLP
    • RDYN: 0.1Ω (I/O to GND)
  • Low insertion loss: 2GHz (–3dB bandwidth)
  • Supports high speed interfaces up to 4Gbps
  • Industrial temperature range: –55°C to +150°C

  • Space-saving industry standard 0201 footprint (0.6mm × 0.3mm) and 0402 footprint (1.0mm x 0.6mm)

  • IEC 61000-4-2 level 4 ESD protection
    • ±30kV contact discharge
    • ±30kV air gap discharge
  • IEC 61000-4-5 surge protection
    • 6A (8/20µs)
  • IO capacitance:
    • 1pF (typical)
  • DC breakdown voltage: 7V (typical)
  • Ultra low leakage current: 50nA (maximum)
  • Extremely low ESD clamping voltage
    • 7.6V at 16A TLP
    • RDYN: 0.1Ω (I/O to GND)
  • Low insertion loss: 2GHz (–3dB bandwidth)
  • Supports high speed interfaces up to 4Gbps
  • Industrial temperature range: –55°C to +150°C

  • Space-saving industry standard 0201 footprint (0.6mm × 0.3mm) and 0402 footprint (1.0mm x 0.6mm)

Description

The ESD441 is a unidirectional ESD protection diode for protecting data lines and other I/O ports. The ESD441 is rated to dissipate ESD strikes up to ±30kV per the IEC 61000-4-2 international standard (greater than Level 4).

This device features a 1pF (typical) IO capacitance enabling high-speed interfaces protection for protocols such as USB 2.0. The extremely low dynamic resistance (0.1Ω) and clamping voltage (7.6V at 16TLP) is specified for system level protection against transient events.

The 30kV ESD rating and 6A surge provides robust transient protection in a tiny package for protecting 5.5V power rails in portable electronics and other space constrained applications such as wearables.

The ESD441 is offered in the industry standard 0201 and 0402 package.
