DS25BR204

ACTIVE

Texas Instruments DS25BR204 Product Info

1 April 2026 1

Function	Equalizer, Repeater
Protocols	CML, LVDS, LVPECL
Number of transmitters	4
Number of receivers	2
Supply voltage (V)	3.3
Signaling rate (Mbps)	3125
Input signal	CML, LVDS, LVPECL
Output signal	LVDS
Rating	Catalog
Operating temperature range (°C)	-40 to 85

WQFN (RTA)-40-36 mm² 6 x 6

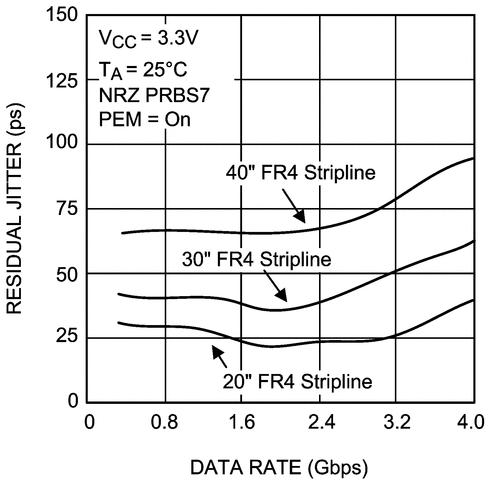

DC - 3.125 Gbps Low Jitter, Low Skew, Low Power Operation

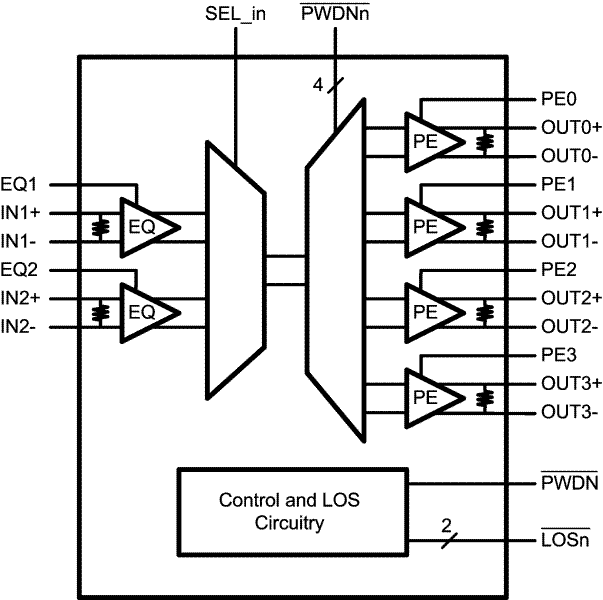

Pin Selectable Transmit Pre-Emphasis and Receive Equalization Eliminate Data Dependant Jitter
Wide Input Common Mode Range Allows DC-coupled Interface to LVDS, CML and LVPECL Drivers
Redundant Inputs
Integrated 100Ω Input and Output Terminations
8 kV ESD on LVDS I/O Pins Protects Adjoining Components

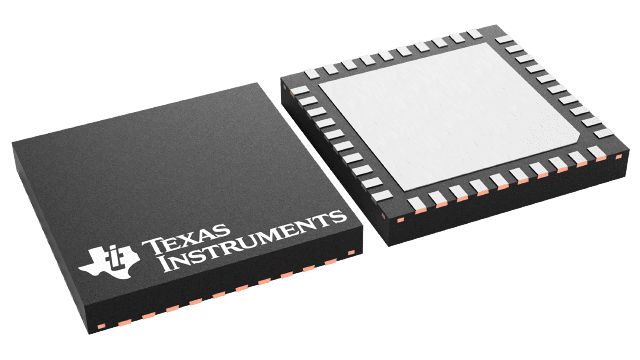

Small 6 mm x 6 mm WQFN-40 Space Saving Package

All trademarks are the property of their respective owners.

DC - 3.125 Gbps Low Jitter, Low Skew, Low Power Operation
Pin Selectable Transmit Pre-Emphasis and Receive Equalization Eliminate Data Dependant Jitter
Wide Input Common Mode Range Allows DC-coupled Interface to LVDS, CML and LVPECL Drivers
Redundant Inputs
Integrated 100Ω Input and Output Terminations
8 kV ESD on LVDS I/O Pins Protects Adjoining Components
Small 6 mm x 6 mm WQFN-40 Space Saving Package

All trademarks are the property of their respective owners.

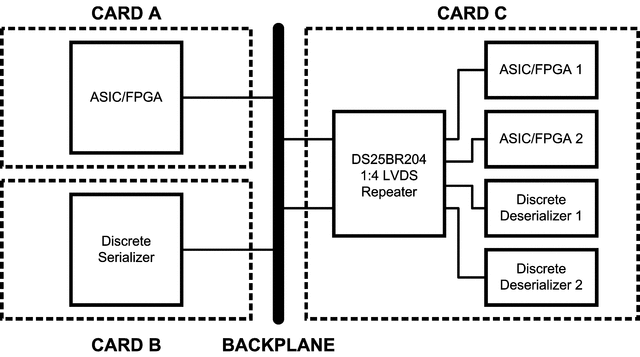

DS25BR204:3.125-Gbps 1:4 LVDS repeater with transmit pre-emphasis and receive equalization.Package:WQFN (RTA)-40-36 mm² 6 x 6
