DS90LVRA2
  • DS90LVRA2
  • DS90LVRA2

DS90LVRA2

ACTIVE

1.8V 600Mbps LVDS dual differential line receiver

Texas Instruments DS90LVRA2 Product Info

1 April 2026 7

Parameters

Function

Receiver

Protocols

LVDS

Number of transmitters

0

Number of receivers

2

Supply voltage (V)

1.8

Signaling rate (Mbps)

600

Input signal

LVDS

Output signal

CMOS, LVCMOS, LVTTL, TTL

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

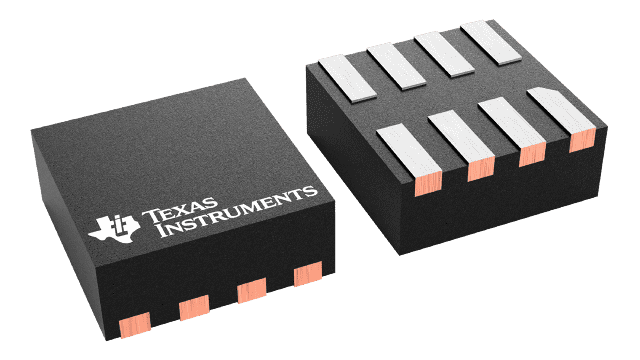

WSON (DEM)-8-4 mm² 2 x 2

Features

  • 600 Mbps (300 MHz) switching rates
  • 50 ps differential skew (typical)
  • 0.1 ns channel-to-channel skew (typical)
  • 1.8 V power supply
  • Flow-through pinout
  • Power down high impedance on LVDS inputs
  • Output slew rate control
  • LVDS inputs accept LVDS/CML/LVPECL signals
  • Conforms to ANSI/TIA/EIA-644 standard
  • Pin compatible with DS90LV028A-Q1
  • OPN variants
    • Standard: 0°C to 70°C
    • Industrial: -40°C to +85°C
  • 600 Mbps (300 MHz) switching rates
  • 50 ps differential skew (typical)
  • 0.1 ns channel-to-channel skew (typical)
  • 1.8 V power supply
  • Flow-through pinout
  • Power down high impedance on LVDS inputs
  • Output slew rate control
  • LVDS inputs accept LVDS/CML/LVPECL signals
  • Conforms to ANSI/TIA/EIA-644 standard
  • Pin compatible with DS90LV028A-Q1
  • OPN variants
    • Standard: 0°C to 70°C
    • Industrial: -40°C to +85°C

Description

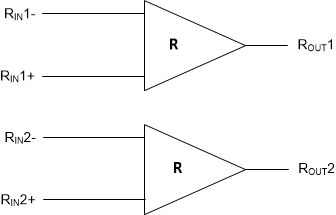

The DS90LVRA2 is a dual CMOS differential line receiver designed for applications requiring high input common mode range, high data rates and CMOS output with slew rate control. The device is designed to support data rates of 600 Mbps (300 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.

The DS90LVRA2 accepts low voltage (350 mV typical) differential input signals and translates them to 1.8 V CMOS output levels depending on power supply voltage. The DS90LVRA2 has a flow-through design for easy PCB layout.

The DS90LVRA2 and companion LVDS line driver DS90LV027AQ provide a new alternative to high power PECL/ECL devices for high speed point-to-point interface applications.
