ACTIVE
Resolution (Bits) |
12 |
Sample rate (max) (ksps) |
140 |
Number of input channels |
2 |
Interface type |
I2C |
Architecture |
SAR |
Input type |
Pseudo-Differential, Single-ended |
Multichannel configuration |
Multiplexed |
Rating |
Automotive |
TI functional safety category |
Functional Safety-Capable |
Reference mode |
Supply |
Input voltage range (max) (V) |
3.6 |
Input voltage range (min) (V) |
0 |
Features |
Comparator, Oscillator, Small Size |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
0.0009 |
Analog supply voltage (min) (V) |
1.65 |
Analog supply voltage (max) (V) |
3.6 |
SNR (dB) |
71.5 |
Digital supply (min) (V) |
1.65 |
Digital supply (max) (V) |
3.6 |

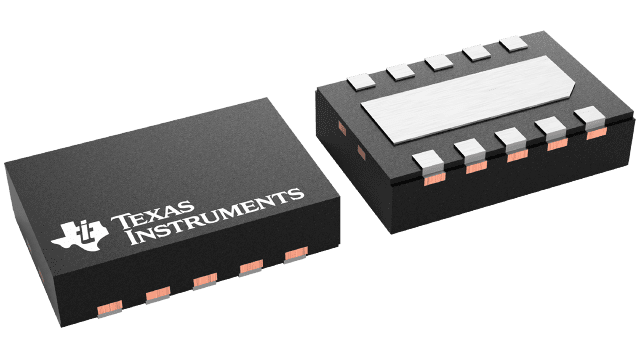

WSON (DQC)-10-6 mm² 3 x 2
The ADS7142-Q1 is a 12-bit, 140-kSPS successive-approximation register (SAR) analog-to-digital converter (ADC) that can autonomously monitor signals while maximizing system power, reliability, and performance. The device implements event-triggered interrupts per channel using a digital window comparator with programmable high and low thresholds, hysteresis, and event counter. The device includes a dual-channel analog multiplexer in front of a SAR ADC followed by an internal data buffer for converting and capturing data from sensors.
The ADS7142-Q1 is available in a 10-pin WSON package and can achieve low power consumption of only 900 nW. The small form-factor and low-power consumption make this device designed for space-constrained applications.
