DS90C185
  • DS90C185
  • DS90C185

DS90C185

ACTIVE

Low Power FPD-Link (LVDS) Serializer

Texas Instruments DS90C185 Product Info

1 April 2026 3

Parameters

Applications

In-vehicle Infotainment (IVI)

Input compatibility

LVCMOS

Function

Serializer

Output compatibility

LVDS

Color depth (bpp)

24

Features

Low-EMI Point-to-Point Communication

EMI reduction

LVDS

Rating

Catalog

Operating temperature range (°C)

-10 to 70

Package

WQFN (NJV)-48-36 mm² 6 x 6

Features

  • Typical power 50 mW at 75-MHz pclk
  • Drives up to 1400x1050 at 60-Hz (SXGA+) Displays
  • 2.94 Gbps of throughput
  • Two operating modes: 24-bit and 18-bit RGB
  • 25- to 105-MHz Pixel Clock support
  • Single 1.8-V Supply
  • Sleep Mode
  • Spread Spectrum Clock compatibility

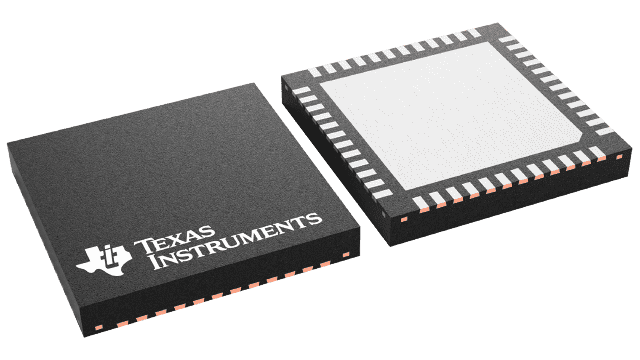

  • Small 6mm x 6mm x 0.8mm WQFN package
  • Typical power 50 mW at 75-MHz pclk
  • Drives up to 1400x1050 at 60-Hz (SXGA+) Displays
  • 2.94 Gbps of throughput
  • Two operating modes: 24-bit and 18-bit RGB
  • 25- to 105-MHz Pixel Clock support
  • Single 1.8-V Supply
  • Sleep Mode
  • Spread Spectrum Clock compatibility
  • Small 6mm x 6mm x 0.8mm WQFN package

Description

The DS90C185 is a low-power serializer for portable battery-powered applications that reduces the size of the RGB interface between the host GPU and the display.

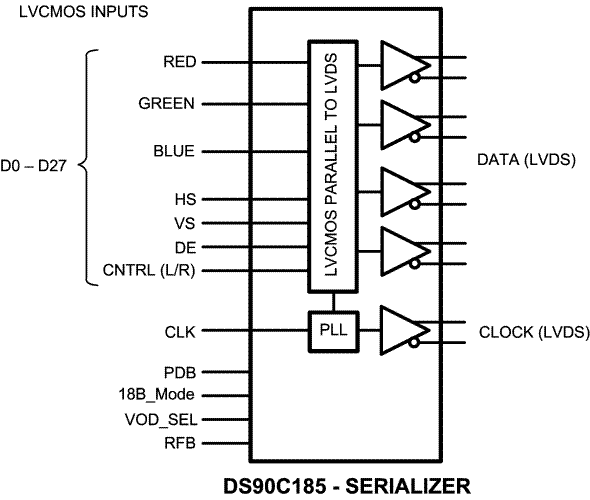

24-bit RGB plus three video control signals are serialized and translated to LVDS-compatible levels and sent as a 4 data + clock (4D+C) reduced-width LVDS compatible interface. The LVDS Interface is compatible with FPD-Link (1) deserializers and many LVDS based displays. These interfaces are commonly supported in LCD modules with “LVDS” or FPD-Link / FlatLink single-pixel input interfaces.

Displays up to 1400x1050 at 60 fps are supported with 24-bpp color depth. 18 bpp may also be supported by a dedicated mode with a 3D+C output. Power dissipation is minimized by the full LVCMOS design and 1.8-V powered core and VDDIO rails.

The DS90C185 is offered in the small 48-pin WQFN package and features single 1.8-V supply operation for minimum power dissipation (50 mW typ).
