ACTIVE
Sample rate (max) (Msps) |
50 |
Resolution (Bits) |
14 |
Number of input channels |
4 |
Interface type |
JESD204B |
Analog input BW (MHz) |
450 |
Features |
Low Power |
Rating |
Catalog |
Peak-to-peak input voltage range (V) |
2 |
Power consumption (typ) (mW) |
491 |
Architecture |
Pipeline |
SNR (dB) |
72.8 |
ENOB (Bits) |
11.9 |
SFDR (dB) |
93 |
Operating temperature range (°C) |
-40 to 85 |
Input buffer |
No |

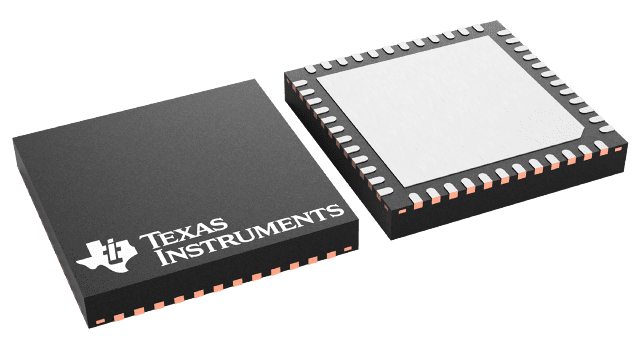

VQFN (RGZ)-48-49 mm² 7 x 7

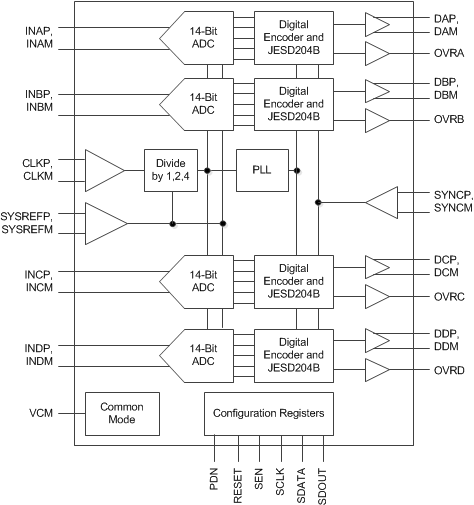

The ADC34J4x is a high-linearity, ultra-low power, quad-channel, 14-bit, 50-MSPS to 160-MSPS, analog-to-digital converter (ADC). The devices are designed specifically to support demanding, high input frequency signals with large dynamic range requirements. A clock input divider allows more flexibility for system clock architecture design while the SYSREF input enables complete system synchronization. The ADC34J4x family supports serial current-mode logic (CML) and JESD204B interfaces in order to reduce the number of interface lines, thus allowing high system integration density. The JESD204B interface is a serial interface, where the data of each ADC are serialized and output over only one differential pair. An internal phase-locked loop (PLL) multiplies the incoming ADC sampling clock by 20 to derive the bit clock that is used to serialize the 14-bit data from each channel. The ADC34J4x devices support subclass 1 with interface speeds up to 3.2 Gbps.
