DS90C031
  • DS90C031
  • DS90C031
  • DS90C031

DS90C031

ACTIVE

LVDS quad CMOS differential line driver

Texas Instruments DS90C031 Product Info

1 April 2026 3

Parameters

Function

Driver

Protocols

LVDS

Number of transmitters

4

Number of receivers

0

Supply voltage (V)

5

Signaling rate (Mbps)

155.5

Input signal

CMOS, TTL

Output signal

LVDS

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

SOIC (D)-16-59.4 mm² 9.9 x 6

Features

  • >155.5 Mbps (77.7 MHz) switching rates
  • ±350 mV differential signaling
  • Ultra low power dissipation
  • 400 ps maximum differential skew (5V, 25°C)
  • 3.5 ns maximum propagation delay
  • Industrial operating temperature range
  • Military operating temperature range option
  • Available in surface mount packaging (SOIC) and (LCC)
  • Pin compatible with DS26C31, MB571 (PECL) and 41LG (PECL)
  • Compatible with IEEE 1596.3 SCI LVDS standard
  • Conforms to ANSI/TIA/EIA-644 LVDS standard
  • Available to Standard Microcircuit Drawing (SMD) 5962-95833

  • >155.5 Mbps (77.7 MHz) switching rates
  • ±350 mV differential signaling
  • Ultra low power dissipation
  • 400 ps maximum differential skew (5V, 25°C)
  • 3.5 ns maximum propagation delay
  • Industrial operating temperature range
  • Military operating temperature range option
  • Available in surface mount packaging (SOIC) and (LCC)
  • Pin compatible with DS26C31, MB571 (PECL) and 41LG (PECL)
  • Compatible with IEEE 1596.3 SCI LVDS standard
  • Conforms to ANSI/TIA/EIA-644 LVDS standard
  • Available to Standard Microcircuit Drawing (SMD) 5962-95833

Description

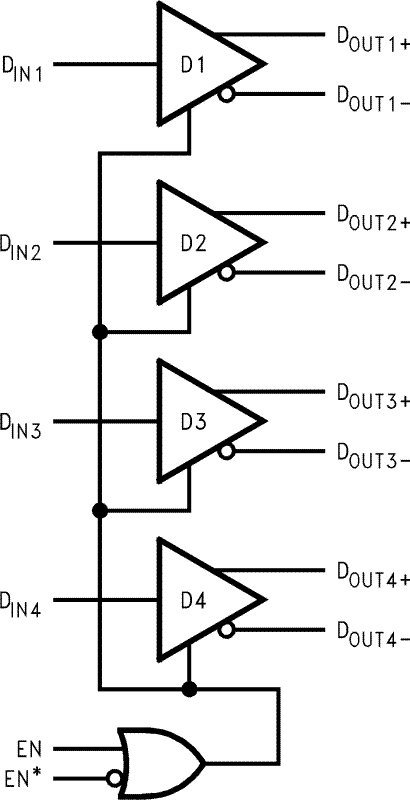

The DS90C031 is a quad CMOS differential line driver designed for applications requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 155.5 Mbps (77.7 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology.

The DS90C031 accepts TTL/CMOS input levels and translates them to low voltage (350 mV) differential output signals. In addition the driver supports a TRI-STATE® function that may be used to disable the output stage, disabling the load current, and thus dropping the device to an ultra low idle power state of 11 mW typical.

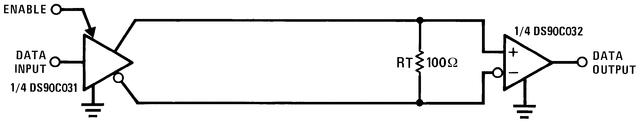

The DS90C031 and companion line receiver (DS90C032) provide a new alternative to high power psuedo-ECL devices for high speed point-to-point interface applications.
