DRV8711
  • DRV8711

DRV8711

ACTIVE

52-V, bipolar stepper motor gate driver with 1/256 microstepping & stall detect

Texas Instruments DRV8711 Product Info

1 April 2026 4

Parameters

Vs ABS (max) (V)

60

Vs (min) (V)

8

Control mode

PWM, STEP/DIR

Control interface

Hardware (GPIO), SPI

Number of full bridges

2

Sleep current (µA)

65

Microstepping levels

256

Decay mode

Fast, Mixed, Slow

Features

Stall Detection, Voltage Regulator

Rating

Catalog

Operating temperature range (°C)

-40 to 85

Package

HTSSOP (DCP)-38-62.08 mm² 9.7 x 6.4

Features

  • Pulse width modulation (PWM) microstepping motor driver
    • Built-In 1/256-Step microstepping indexer
    • Drives external N-Channel MOSFETs
    • Optional STEP/DIR pins
    • Optional PWM control interface for DC motors
  • Flexible decay modes, including automatic mixed decay mode
  • Stall detection with optional BEMF output
  • Highly configurable SPI serial interface
  • Internal reference and torque DAC
  • 8-V to 52-V Operating supply voltage range
  • Scalable output current
  • Thermally enhanced surface-mount package
  • 5-V Regulator capable of 10-mA load
  • Protection and diagnostic features
    • Overcurrent protection (OCP)
    • Overtemperature shutdown (OTS)
    • Undervoltage lockout (UVLO)
    • Individual fault condition indication bits
    • Fault condition indication pin
  • Pulse width modulation (PWM) microstepping motor driver
    • Built-In 1/256-Step microstepping indexer
    • Drives external N-Channel MOSFETs
    • Optional STEP/DIR pins
    • Optional PWM control interface for DC motors
  • Flexible decay modes, including automatic mixed decay mode
  • Stall detection with optional BEMF output
  • Highly configurable SPI serial interface
  • Internal reference and torque DAC
  • 8-V to 52-V Operating supply voltage range
  • Scalable output current
  • Thermally enhanced surface-mount package
  • 5-V Regulator capable of 10-mA load
  • Protection and diagnostic features
    • Overcurrent protection (OCP)
    • Overtemperature shutdown (OTS)
    • Undervoltage lockout (UVLO)
    • Individual fault condition indication bits
    • Fault condition indication pin

Description

The DRV8711 device is a stepper motor controller that uses external N-channel MOSFETs to drive a bipolar stepper motor or two brushed DC motors. A microstepping indexer is integrated, which is capable of step modes from full step to 1/256-step.

An ultra-smooth motion profile can be achieved using adaptive blanking time and various current decay modes, including an auto-mixed decay mode. Motor stall is reported with an optional back-EMF output.

A simple step/direction or PWM interface allows easy interfacing to controller circuits. A SPI serial interface is used to program the device operation. Output current (torque), step mode, decay mode, and stall detection functions are all programmable through a SPI serial interface.

Internal shutdown functions are provided for overcurrent protection, short-circuit protection, undervoltage lockout, and overtemperature. Fault conditions are indicated through a FAULTn pin, and each fault condition is reported through a dedicated bit through SPI.

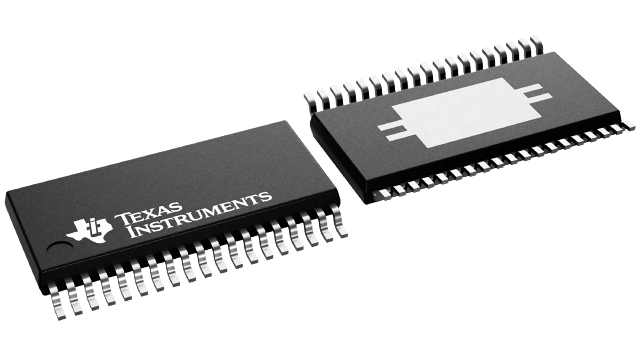

The DRV8711 is packaged in a PowerPAD™ 38-pin HTSSOP package with thermal pad (Eco-friendly: RoHS and no Sb/Br).
