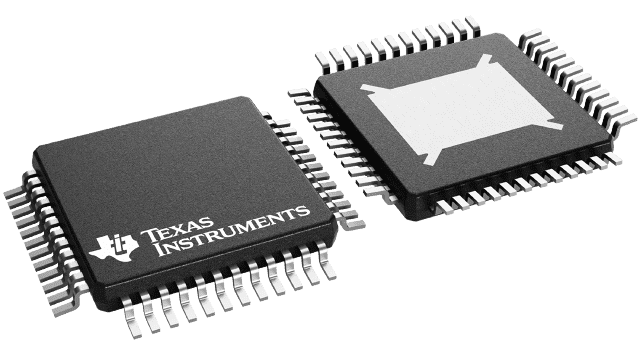

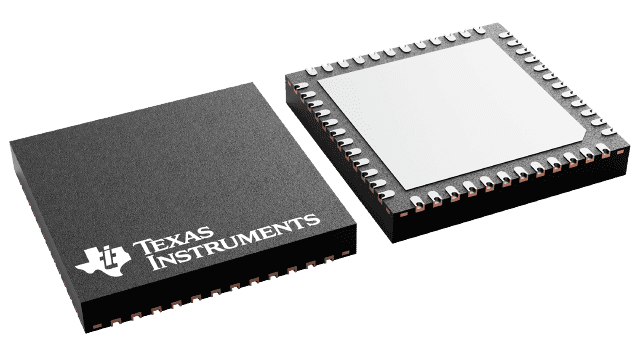

- AEC-Q100 qualified for automotive applications - Temperature options:
- DRV3233EPHP: –40°C to +150°C, TA
- DRV3233QPHP: –40°C to +125°C,TA
- Functional Safety-Compliant
- Developed for functional safety applications
- Documentation to aid ISO 26262 system design available
- Systematic capability up to ASIL D targeted
- Three phase half-bridge gate driver
- Drives six N-channel MOSFETs (NMOS)
- 4.5 to 60V wide operating voltage range
- Bootstrap architecture for high-side gate driver
- Charge pump for 50mA average gate current
- 100% PWM duty cycle support
- Overdrive supply of external switches
- Smart Gate Drive architecture
- 45-level configurable peak gate drive current up to 1000 / 2000mA (source / sink)
- Three-step dynamic drive current control
- Soft shutdown for power stage protection
- Low-side Current Sense Amplifier
- Sub-1mV low input offset across temperature
- 9-level adjustable gain
- SPI-based detailed configuration and diagnostics
- DRVOFF pin to disable driver independently
- High voltage wake up pin (nSLEEP)
- Multiple PWM interface options available
- 6x, 3x, 1x PWM Modes
- PWM over SPI
- Supports 3.3V, and 5V Logic Inputs
- Optional programmable OTP for reset settings
- Advanced and configurable protection features
- Battery and power supply voltage monitors
- Phase feedback comparator
- MOSFET VDS and Rsense over current monitors
- Analog Built-In-Self-Test, Clock monitors
- Fault condition indicator pin
