Texas Instruments DLPC3420 Product Info

Parameters

Component type	Display Controller
Chipset family	DLP160AP, DLPA2000, DLPA2005, DLPC3420
Display resolution (max)	QnHD (320x180)
Operating temperature range (°C)	0 to 70
Rating	Catalog

Package

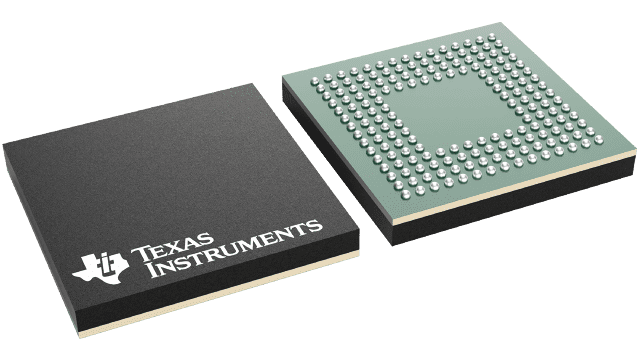

NFBGA (ZVB)-176-49 mm² 7 x 7

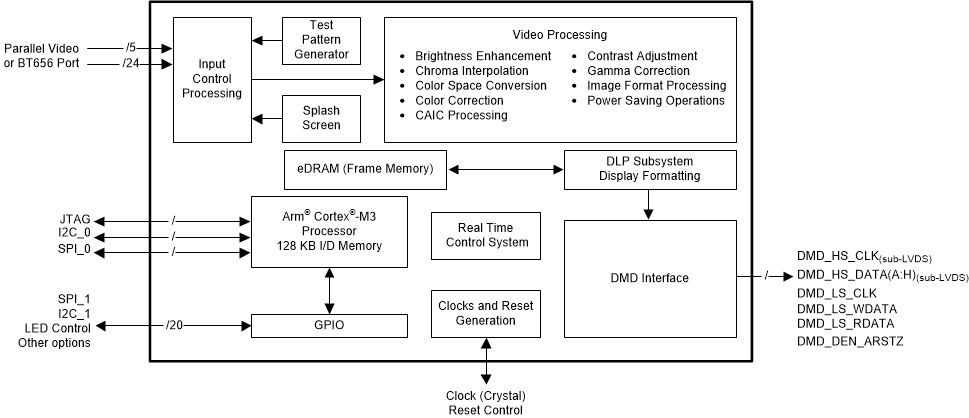

Features

Display controller for DLP160AP (0.16 QnHD) DMD
- Supports input resolutions up to QnHD
- Low-power DMD interface with interface training
Input frame rates up to 60 Hz
Pixel data processing:
- Content adaptive illumination control (CAIC)
- 1D Keystone correction
- Color coordinate adjustment
- Active power management processing
- Programmable degamma
- Color space conversion
- 4:2:2 to 4:4:4 chroma interpolation
24-bit, input pixel interface support:
- Parallel or BT656, interface protocols
- Pixel clock up to 155 MHz
- Multiple input pixel data format options
MIPI DSI (display serial interface) type 3:
- 1-4 lanes, up to 470-Mbps lane speed
External flash support
Auto DMD parking at power down
Embedded frame memory (eDRAM)
System features:
- I²C device control
- Programmable splash screens
- Programmable LED current control
- Display image rotation

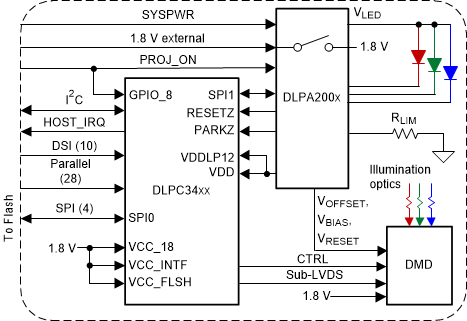

Pair with DLPA2000 and DLPA2005 PMIC (power management integrated circuit) and LED driver

Display controller for DLP160AP (0.16 QnHD) DMD
- Supports input resolutions up to QnHD
- Low-power DMD interface with interface training
Input frame rates up to 60 Hz
Pixel data processing:
- Content adaptive illumination control (CAIC)
- 1D Keystone correction
- Color coordinate adjustment
- Active power management processing
- Programmable degamma
- Color space conversion
- 4:2:2 to 4:4:4 chroma interpolation
24-bit, input pixel interface support:
- Parallel or BT656, interface protocols
- Pixel clock up to 155 MHz
- Multiple input pixel data format options
MIPI DSI (display serial interface) type 3:
- 1-4 lanes, up to 470-Mbps lane speed
External flash support
Auto DMD parking at power down
Embedded frame memory (eDRAM)
System features:
- I²C device control
- Programmable splash screens
- Programmable LED current control
- Display image rotation
Pair with DLPA2000 and DLPA2005 PMIC (power management integrated circuit) and LED driver

Description

The DLPC3420 digital controller, part of the DLP160AP (0.16 QnHD) chipset, enables operation of the DLP160AP digital micromirror device (DMD). The DLPC3420 controller provides a convenient, multi-functional interface between user electronics and the DMD, enabling small form factor and low power display applications.

Visit the getting started with TI DLP Pico™ display technology page, and view the programmers guide to learn how to get started.

The chipset includes established resources to help the user accelerate the design cycle, which includeproduction ready optical modules, optical module manufacturers, and design houses.

The DLPC3420 digital controller, part of the DLP160AP (0.16 QnHD) chipset, enables operation of the DLP160AP digital micromirror device (DMD). The DLPC3420 controller provides a convenient, multi-functional interface between user electronics and the DMD, enabling small form factor and low power display applications.

Visit the getting started with TI DLP Pico™ display technology page, and view the programmers guide to learn how to get started.

The chipset includes established resources to help the user accelerate the design cycle, which includeproduction ready optical modules, optical module manufacturers, and design houses.
