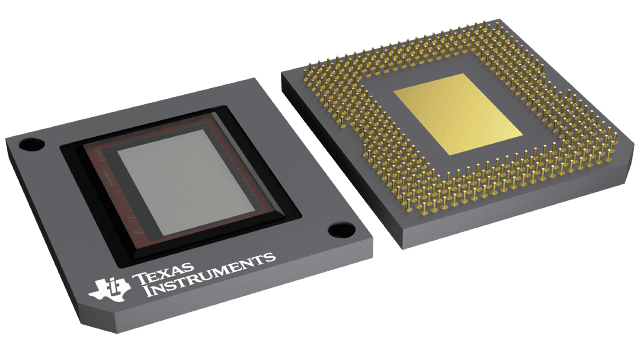

DLP800XE
  • DLP800XE

DLP800XE

ACTIVE

0.80-inch 4K+ ProAV DLP digital micromirror device (DMD)

Texas Instruments DLP800XE Product Info

1 April 2026 0

Parameters

Rating

Catalog

Operating temperature range (°C)

to

Package

DLP-S600 (FYV)-350-1127 mm² 35 x 32.2

Features

  • 0.8-inch diagonal micromirror array
    • 4K+ (3840 × 2400) display resolution
    • 9.0µm micromirror pitch
    • ±14.5° micromirror tilt (relative to flat surface)
    • Corner illumination
  • Supports high optical power density for high-brightness large venue displays
    • Up to 22W/cm2 total optical power density
  • 2xLVDS input data bus
  • Supports 4K+ up to 60 Hz
  • Laser-phosphor and RGB lasers are supported by DLPC4420 display controller, DLPA100 power management and motor driver IC
  • 0.8-inch diagonal micromirror array
    • 4K+ (3840 × 2400) display resolution
    • 9.0µm micromirror pitch
    • ±14.5° micromirror tilt (relative to flat surface)
    • Corner illumination
  • Supports high optical power density for high-brightness large venue displays
    • Up to 22W/cm2 total optical power density
  • 2xLVDS input data bus
  • Supports 4K+ up to 60 Hz
  • Laser-phosphor and RGB lasers are supported by DLPC4420 display controller, DLPA100 power management and motor driver IC

Description

The DLP800XE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 4K+ solid-state illuminated display systems. The TI DLP0.8-inch 4K+ chipset comprises the DMD, two DLPC4420 display controllers, DLPA300 micromirror driver, and DLPA100 power and motor driver. The compact physical size of the chipset provides a complete system that enables a small form factor 4K+ displays with solid-state illumination.

To help accelerate the design cycle, the DMD ecosystem includes established resources, which include production-ready optical modules, optical module manufacturers, and design houses.

To learn more about how to start designing with the DMD, visit the Getting Started with TI DLP display technology page.

The DLP800XE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 4K+ solid-state illuminated display systems. The TI DLP0.8-inch 4K+ chipset comprises the DMD, two DLPC4420 display controllers, DLPA300 micromirror driver, and DLPA100 power and motor driver. The compact physical size of the chipset provides a complete system that enables a small form factor 4K+ displays with solid-state illumination.

To help accelerate the design cycle, the DMD ecosystem includes established resources, which include production-ready optical modules, optical module manufacturers, and design houses.

To learn more about how to start designing with the DMD, visit the Getting Started with TI DLP display technology page.
