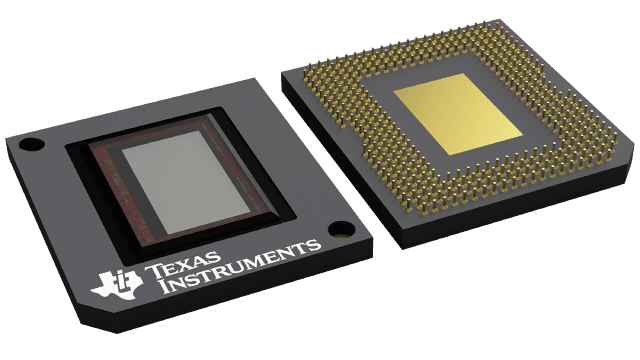

DLP78TUV

ACTIVE

0.78 HEP UV DMD for 3D Printing

Texas Instruments DLP78TUV Product Info

1 April 2026 3

Parameters

Illumination wavelength (min) (nm)

385

Illumination wavelength (max) (nm)

410

Display resolution (max)

4K UHD (3840x2160)

Array diagonal (in)

0.78

Micromirror array size

1920 x 1080

Micromirror pitch (mm)

0.009

Micromirror array orientation

Corner

Rating

Catalog

Operating temperature range (°C)

0 to 70

Package

DLP-S600 (FYU)-350-1127 mm² 35 x 32.2

Features

  • 0.78-inch diagonal micromirror array
    • 1920×1080 array of aluminum micrometer-sized mirrors, in an orthogonal layout
    • 8.2 Megapixels, 3840 × 2160 pixels on the resin
    • 9.0-micronmirror pitch
    • ±14.5° micromirror tilt (relative to flat surface)
    • Corner illumination for optimal efficiency and contrast
  • 2xLVDS input data bus
  • Dedicate DLPC6422 3D print light controller and DLPA100 and DLPA300 power management for reliable operation
  • 0.78-inch diagonal micromirror array
    • 1920×1080 array of aluminum micrometer-sized mirrors, in an orthogonal layout
    • 8.2 Megapixels, 3840 × 2160 pixels on the resin
    • 9.0-micronmirror pitch
    • ±14.5° micromirror tilt (relative to flat surface)
    • Corner illumination for optimal efficiency and contrast
  • 2xLVDS input data bus
  • Dedicate DLPC6422 3D print light controller and DLPA100 and DLPA300 power management for reliable operation

Description

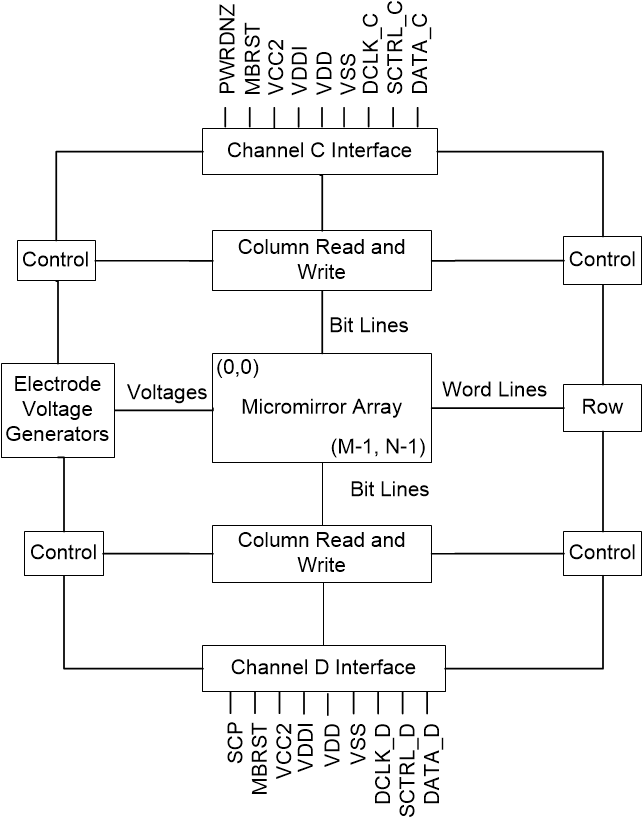

The DLP78TUV digital micromirror device (DMD) is a digitally controlled micro-opto-electromechanical system (MOEMS) spatial light modulator (SLM) that enables 1080p and 4K UHD imaging systems. When coupled to an appropriate optical system, the DMD displays a very crisp and high-quality image. This DMD is a component of the chipset comprising DLP78TUV DMD, DLPC6422 light Controller, DLPA300 micromirror driver, and DLPA100 power supply. The compact physical size of the chipset provides a complete system that enables small form factor 4K UHD or 1080p HD imaging with high power output, high contrast optical engines for fast, high resolution, reliable DLP 3D Printers.

To help accelerate the design cycle, the DMD ecosystem includes established resources, which include production ready optical modules, optical module manufacturers, and design houses.
