ACTIVE
Architecture |
FET / CMOS Input, Voltage FB |
Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
5.5 |
GBW (typ) (MHz) |
150 |
BW at Acl (MHz) |
250 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
275 |
Vn at flatband (typ) (nV√Hz) |
10 |
Vn at 1 kHz (typ) (nV√Hz) |
10 |
Iq per channel (typ) (mA) |
9.6 |
Vos (offset voltage at 25°C) (max) (mV) |
2.4 |
Rail-to-rail |
In to V-, Out |
Features |
Shutdown |
Rating |
Automotive |
Operating temperature range (°C) |
-40 to 85 |
CMRR (typ) (dB) |
68 |
Input bias current (max) (pA) |
50 |
Offset drift (typ) (µV/°C) |
5 |
Iout (typ) (mA) |
150 |
2nd harmonic (dBc) |
56 |
3rd harmonic (dBc) |
73 |
Frequency of harmonic distortion measurement (MHz) |
10 |
SOT-SC70 (DCK)-6-4.2 mm² 2 x 2.1

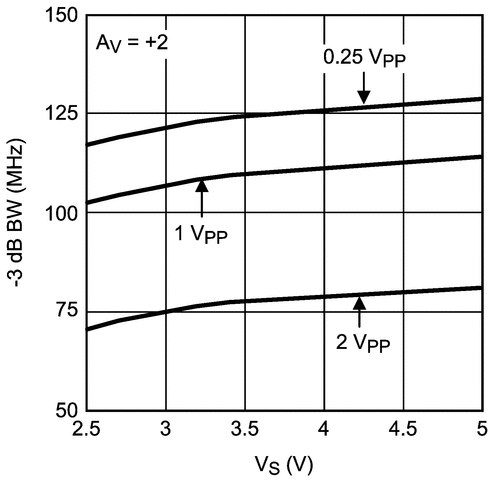

The LMH6601 device is a low-voltage (2.4 V to 5.5 V), high-speed voltage feedback operational amplifier suitable for use in a variety of consumer and industrial applications. With a bandwidth of 125 MHz at a gain of +2 and ensured high-output current of 100 mA, the LMH6601 is an ideal choice for video line driver applications, including HDTV. Low-input bias current (50 pA maximum), rail-to-rail output, and low current noise allow the use of the LMH6601 in various industrial applications such as transimpedance amplifiers, active filters, or high-impedance buffers. The LMH6601 is an attractive solution for systems which require high performance at low supply voltages. The LMH6601 is available in a 6-pin SC70 package, and includes a micropower shutdown feature.
