Display resolution (max) |
1080p (1920x1080) |
System brightness (max) (lm) |
8000 |
Array diagonal (in) |
0.65 |
Chipset family |
DLPC7540 |
Input frame rate (max) (Hz) |
240 |
Micromirror array size |
1920x1080 |
Micromirror pitch (m) |
0.0000076 |
Rating |
Catalog |
Operating temperature range (°C) |
0 to 70 |
DLP-S450 (FYP)-149-718.06 mm² 32.2 x 22.3

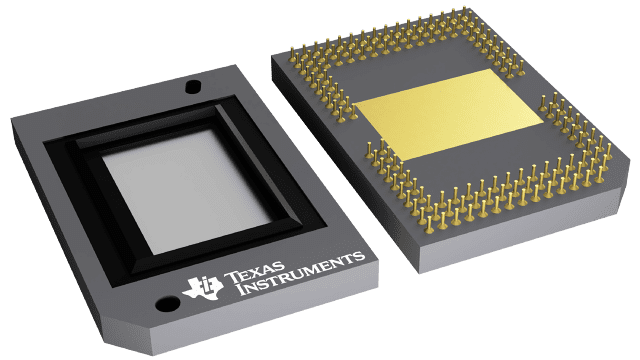

The DLP651NE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright 1080p display systems. The DLP Products 0.65-inch 1080p chipset is composed of the DMD, DLPC7530 display controller, and DLPA100 power and motor driver. The compact physical size of the chipset provides a complete system solution that enables a small form factor 1080p displays.
The DMD ecosystem includes established resources to help the user accelerate the design cycle, visit the DLP® Products third-party search tools to find approved optical module manufacturers and third-party providers.
Visit Getting Started With TI DLP Display Technology to learn more about how to start designing with the DMD.
