CSD86336Q3D
  • CSD86336Q3D
  • CSD86336Q3D

CSD86336Q3D

ACTIVE

25-V, N channel synchronous buck NexFET™ power MOSFET, SON 3 mm x 3 mm power block, 20 A

Texas Instruments CSD86336Q3D Product Info

1 April 2026 4

Parameters

VDS (V)

25

VGS (V)

10

Type

Power block

Configuration

PowerBlock

ID - continuous drain current at TA=25°C (A)

20

Power loss (W)

1.8

Ploss current (A)

15

Features

Power supply

Rating

Catalog

Operating temperature range (°C)

-55 to 150

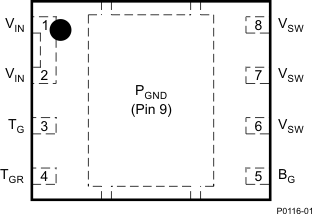

Package

VSON-CLIP (DPB)-8-10.89 mm² 3.3 x 3.3

Features

  • Half-Bridge Power Block
  • 93.0% System Efficiency at 12 A
  • Up to 20-A Operation
  • High-Frequency Operation (up to 1.5 MHz)
  • High-Density SON 3.3-mm × 3.3-mm Footprint
  • Optimized for 5-V Gate Drive
  • Low-Switching Losses
  • Ultra-Low-Inductance Package
  • RoHS Compliant
  • Halogen Free
  • Lead-Free Terminal Plating
  • Half-Bridge Power Block
  • 93.0% System Efficiency at 12 A
  • Up to 20-A Operation
  • High-Frequency Operation (up to 1.5 MHz)
  • High-Density SON 3.3-mm × 3.3-mm Footprint
  • Optimized for 5-V Gate Drive
  • Low-Switching Losses
  • Ultra-Low-Inductance Package
  • RoHS Compliant
  • Halogen Free
  • Lead-Free Terminal Plating

Description

The CSD86336Q3D NexFET™ power block is an optimized design for synchronous buck applications offering high-current, high-efficiency, and high-frequency capability in a small 3.3-mm × 3.3-mm outline. Optimized for 5-V gate drive applications, this product offers a flexible solution capable of providing a high-density power supply when paired with any 5-V gate drive from an external controller/driver.
