CSD22204W
  • CSD22204W
  • CSD22204W

CSD22204W

ACTIVE

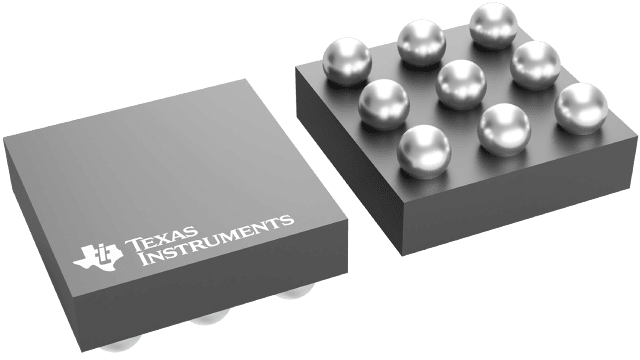

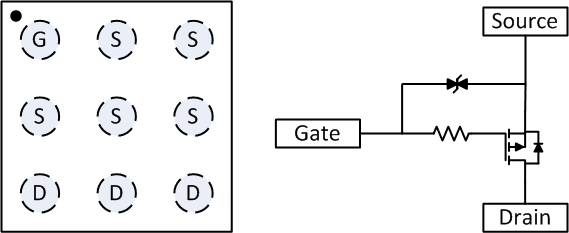

-8V, P channel NexFET™ power MOSFET, single WLP 1.5 mm x 1.5 mm, 9.9 mOhm, gate ESD protection

Texas Instruments CSD22204W Product Info

1 April 2026 4

Parameters

VDS (V)

-8

VGS (V)

-6

Type

P-channel

Configuration

Single

Rds(on) at VGS=4.5 V (max) (mΩ)

9.9

Rds(on) at VGS=2.5 V (max) (mΩ)

14

VGSTH typ (typ) (V)

-0.7

QG (typ) (nC)

18.9

QGD (typ) (nC)

4.2

QGS (typ) (nC)

3.2

ID - silicon limited at TC=25°C (A)

5

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

DSBGA (YZF)-9-3.0625 mm² 1.75 x 1.75

Features

  • Low Resistance
  • Small Footprint 1.5 mm × 1.5 mm
  • Pb Free
  • Gate ESD Protection
  • RoHS Compliant
  • Halogen Free
  • Gate-Source Voltage Clamp
  • Low Resistance
  • Small Footprint 1.5 mm × 1.5 mm
  • Pb Free
  • Gate ESD Protection
  • RoHS Compliant
  • Halogen Free
  • Gate-Source Voltage Clamp

Description

This –8 V, 8.2 mΩ, 1.5 mm × 1.5 mm device is designed to deliver the lowest on resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra low profile. Low on-resistance coupled with the small footprint and low profile make the device ideal for battery operated space constrained applications.
