CSD19533KCS
  • CSD19533KCS

CSD19533KCS

ACTIVE

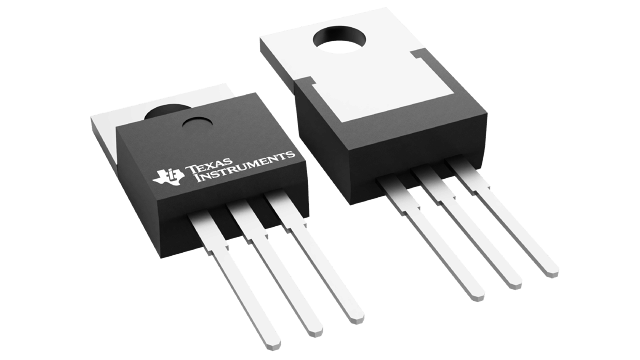

100-V, N channel NexFET™ power MOSFET, single TO-220, 10.5 mOhm

Texas Instruments CSD19533KCS Product Info

1 April 2026 0

Parameters

VDS (V)

100

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

10.5

VGSTH typ (typ) (V)

2.8

QG (typ) (nC)

27

QGD (typ) (nC)

5.4

QGS (typ) (nC)

9

ID - silicon limited at TC=25°C (A)

86

ID - package limited (A)

100

Logic level

No

Rating

Catalog

Operating temperature range (°C)

-55 to 175

Package

TO-220 (KCS)-3-46.228 mm² 10.16 x 4.55

Features

  • Ultra-low Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Pb free terminal plating
  • RoHS compliant
  • Halogen free
  • TO-220 plastic package
  • Ultra-low Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Pb free terminal plating
  • RoHS compliant
  • Halogen free
  • TO-220 plastic package

Description

This 100V, 8.7mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

This 100V, 8.7mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
