CSD19531Q5A
  • CSD19531Q5A

CSD19531Q5A

ACTIVE

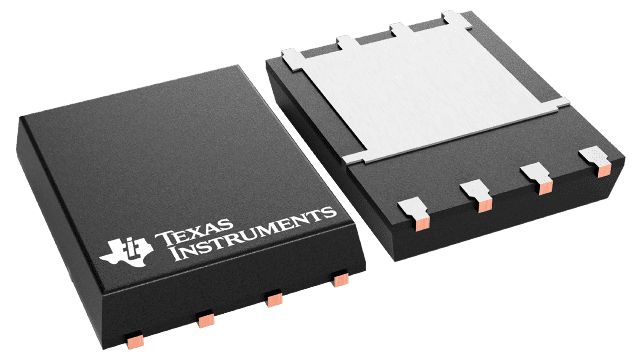

100-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 6.4 mOhm

Texas Instruments CSD19531Q5A Product Info

1 April 2026 0

Parameters

VDS (V)

100

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

6.4

VGSTH typ (typ) (V)

2.7

QG (typ) (nC)

37

QGD (typ) (nC)

6.6

QGS (typ) (nC)

10.5

ID - silicon limited at TC=25°C (A)

110

ID - package limited (A)

100

Logic level

No

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

VSONP (DQJ)-8-29.4 mm² 4.9 x 6

Features

  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5 mm × 6 mm Plastic Package
  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5 mm × 6 mm Plastic Package

Description

This 100 V, 5.3 mΩ, SON 5 mm × 6 mm NexFET power MOSFET is designed to minimize losses in power conversion applications.

Typical RθJA = 40°C/W on a 1−inch2, 2-oz. Cu pad on a 0.06−inch thick FR4 PCB. Max RθJC = 1.0°C/W, pulse duration ≤100 μs, duty cycle ≤1%

For all available packages, see the orderable addendum at the end of the data sheet.

This 100 V, 5.3 mΩ, SON 5 mm × 6 mm NexFET power MOSFET is designed to minimize losses in power conversion applications.

Typical RθJA = 40°C/W on a 1−inch2, 2-oz. Cu pad on a 0.06−inch thick FR4 PCB. Max RθJC = 1.0°C/W, pulse duration ≤100 μs, duty cycle ≤1%

For all available packages, see the orderable addendum at the end of the data sheet.
