CSD18540Q5B
  • CSD18540Q5B
  • CSD18540Q5B

CSD18540Q5B

ACTIVE

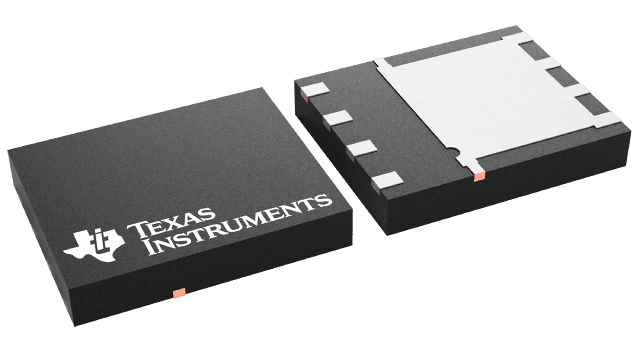

60-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 2.2 mOhm

Texas Instruments CSD18540Q5B Product Info

1 April 2026 1

Parameters

VDS (V)

60

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

2.2

Rds(on) at VGS=4.5 V (max) (mΩ)

3.3

VGSTH typ (typ) (V)

1.9

QG (typ) (nC)

41

QGD (typ) (nC)

6.7

QGS (typ) (nC)

8.8

ID - silicon limited at TC=25°C (A)

221

ID - package limited (A)

100

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 175

Package

VSON-CLIP (DNK)-8-30 mm² 6 x 5

Features

  • Ultra-Low Qg and Qgd
  • Low-Thermal Resistance
  • Avalanche Rated
  • Lead-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5-mm × 6-mm Plastic Package
  • Ultra-Low Qg and Qgd
  • Low-Thermal Resistance
  • Avalanche Rated
  • Lead-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5-mm × 6-mm Plastic Package

Description

This 1.8-mΩ, 60-V NexFET™ power MOSFET is designed to minimize losses in power conversion applications with a SON 5-mm × 6-mm package.

This 1.8-mΩ, 60-V NexFET™ power MOSFET is designed to minimize losses in power conversion applications with a SON 5-mm × 6-mm package.
