ACTIVE
Number of channels |
4 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
44 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
5 |
Vos (offset voltage at 25°C) (max) (mV) |
0.8 |
Offset drift (typ) (µV/°C) |
0.7 |
Input bias current (max) (pA) |
30000 |
GBW (typ) (MHz) |
0.7 |
Slew rate (typ) (V/µs) |
0.4 |
Rail-to-rail |
In to V- |
Iq per channel (typ) (mA) |
0.35 |
Vn at 1 kHz (typ) (nV√Hz) |
22 |
CMRR (typ) (dB) |
117 |
Rating |
Military |
Operating temperature range (°C) |
-55 to 125 |
Iout (typ) (A) |
0.025 |
Architecture |
Bipolar |
Input common mode headroom (to negative supply) (typ) (V) |
-0.3 |
Input common mode headroom (to positive supply) (typ) (V) |
-1.2 |
Output swing headroom (to negative supply) (typ) (V) |
1 |
Output swing headroom (to positive supply) (typ) (V) |
-1 |

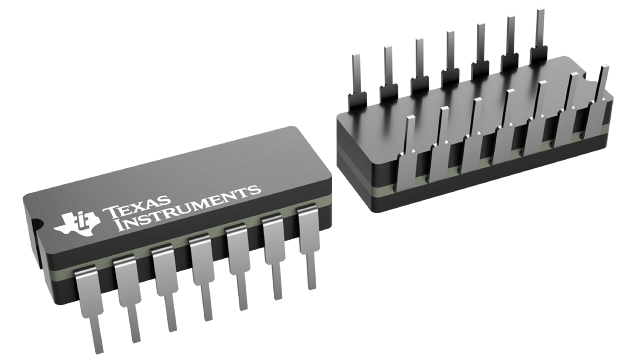

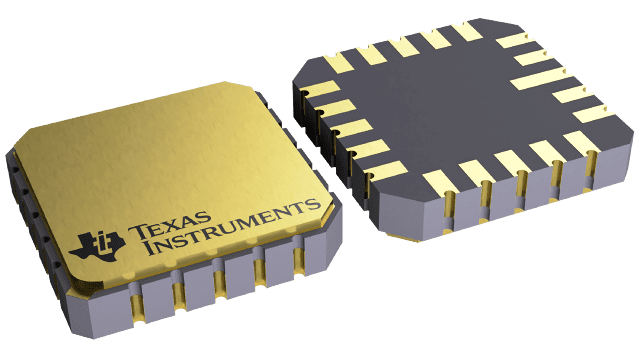

CDIP (J)-14-130.4652 mm² 19.56 x 6.67
), 0.5 V/µV ) for LT1014
Hz Typ
The LT1014, LT1014A, and LT1014D are quad precision operational amplifiers with 14-pin industry-standard configuration. They feature low offset-voltage temperature coefficient, high gain, low supply current, and low noise.
The LT1014, LT1014A, and LT1014D can be operated with both dual ±15-V and single 5-V power supplies. The common-mode input voltage range includes ground, and the output voltage can also swing to within a few milivolts of ground. Crossover distortion is eliminated.
The LT1014C and LT1014D are characterized for operation from 0°C to 70°C. The LT1014I and LT1014DI are characterized for operation from 40°C to 105°C. The LT1014M, LT1014AM and LT1014DM are characterized for operation over the full military temperature range of 55°C to 125°C.
