CSD18534Q5A
  • CSD18534Q5A
  • CSD18534Q5A

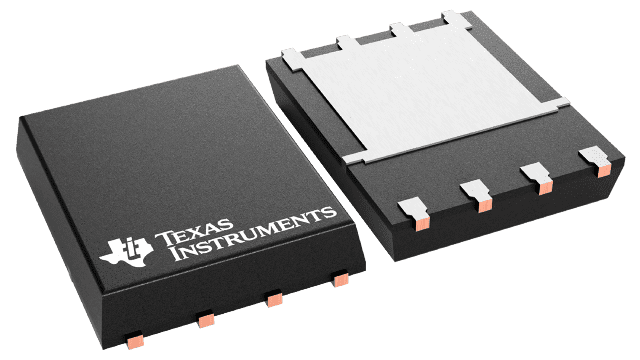

CSD18534Q5A

ACTIVE

60-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 9.8 mOhm

Texas Instruments CSD18534Q5A Product Info

1 April 2026 0

Parameters

VDS (V)

60

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

9.8

Rds(on) at VGS=4.5 V (max) (mΩ)

12.4

VGSTH typ (typ) (V)

1.9

QG (typ) (nC)

17

QGD (typ) (nC)

3.5

QGS (typ) (nC)

3.2

ID - silicon limited at TC=25°C (A)

69

ID - package limited (A)

50

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

VSONP (DQJ)-8-29.4 mm² 4.9 x 6

Features

  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Logic Level
  • Pb Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5 mm × 6 mm Plastic Package
  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Avalanche Rated
  • Logic Level
  • Pb Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5 mm × 6 mm Plastic Package

Description

This 7.8 mΩ, 60 V, SON 5 × 6 mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

This 7.8 mΩ, 60 V, SON 5 × 6 mm NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
