CSD18504Q5A
  • CSD18504Q5A

CSD18504Q5A

ACTIVE

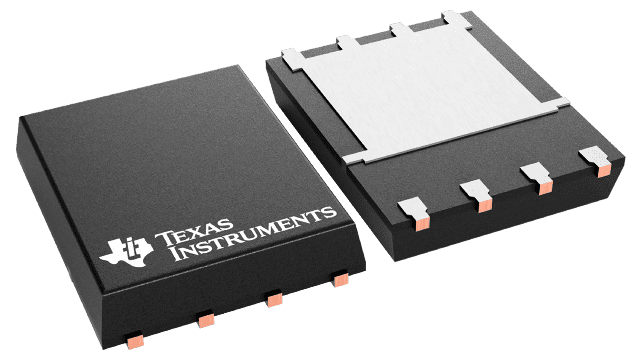

40-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 6.6 mOhm

Texas Instruments CSD18504Q5A Product Info

1 April 2026 1

Parameters

VDS (V)

40

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

6.6

Rds(on) at VGS=4.5 V (max) (mΩ)

9.8

VGSTH typ (typ) (V)

1.8

QG (typ) (nC)

16

QGD (typ) (nC)

2.4

QGS (typ) (nC)

3.2

ID - silicon limited at TC=25°C (A)

75

ID - package limited (A)

50

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

VSONP (DQJ)-8-29.4 mm² 4.9 x 6

Features

  • Ultra-low Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Logic level
  • Pb free terminal plating
  • RoHS compliant
  • Halogen free
  • SON 5mm × 6mm plastic package
  • Ultra-low Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Logic level
  • Pb free terminal plating
  • RoHS compliant
  • Halogen free
  • SON 5mm × 6mm plastic package

Description

This 5.3mΩ, SON 5mm × 6mm, 40V NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

This 5.3mΩ, SON 5mm × 6mm, 40V NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
