LM336-2.5
  • LM336-2.5
  • LM336-2.5

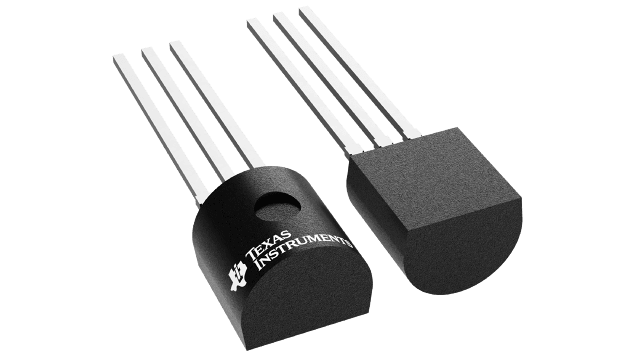

LM336-2.5

ACTIVE

0°C to 70°C, 2.5-V integrated reference circuit

Texas Instruments LM336-2.5 Product Info

1 April 2026 4

Parameters

Rating

Catalog

VO (V)

2.49

Initial accuracy (max) (%)

4

Iz for regulation (min) (µA)

400

VO adj (min) (V)

2.49

VO adj (max) (V)

2.49

Reference voltage (V)

Fixed

Temp coeff (max) (ppm/°C)

34

Operating temperature range (°C)

0 to 70

Iout/Iz (max) (mA)

10

Package

SOIC (D)-8-29.4 mm² 4.9 x 6

Features

  • Low Temperature Coefficient
  • Wide Operating Current...400 µA to 10 mA
  • 0.27- Dynamic Impedance
  • ±1% Tolerance Available
  • Specified Temperature Stability
  • Easily Trimmed for Minimum Temperature Drift
  • Fast Turnon
  • Low Temperature Coefficient
  • Wide Operating Current...400 µA to 10 mA
  • 0.27- Dynamic Impedance
  • ±1% Tolerance Available
  • Specified Temperature Stability
  • Easily Trimmed for Minimum Temperature Drift
  • Fast Turnon

Description

The LM236-2.5, LM336-2.5, and LM336B-2.5 integrated circuits are precision 2.5-V shunt regulator diodes. These reference circuits operate as low-temperature-coefficient 2.5-V Zeners diodes with a 0.2- dynamic impedance. A third terminal provided on the circuit allows the reference voltage and temperature coefficient to be trimmed easily.

The series is useful as precision 2.5-V low-voltage references (VZ) for digital voltmeters, power supplies, or operational-amplifier circuitry. The 2.5-V voltage reference makes it convenient to obtain a stable reference from 5-V logic supplies. Devices in this series operate as shunt regulators, and can be used as either positive or negative voltage references.

The LM236-2.5 is characterized for operation from –25°C to 85°C. The LM336-2.5 and LM336B-2.5 are characterized for operation from 0°C to 70°C.
