ACTIVE
VDS (V) |
30 |
VGS (V) |
20 |
Type |
N-channel |
Configuration |
Single |
Rds(on) at VGS=10 V (max) (mΩ) |
6 |
Rds(on) at VGS=4.5 V (max) (mΩ) |
8.1 |
VGSTH typ (typ) (V) |
1.5 |
QG (typ) (nC) |
9 |
QGD (typ) (nC) |
2.3 |
QGS (typ) (nC) |
3.6 |
ID - silicon limited at TC=25°C (A) |
74 |
ID - package limited (A) |
60 |
Logic level |
Yes |
Rating |
Catalog |
Operating temperature range (°C) |
-55 to 150 |

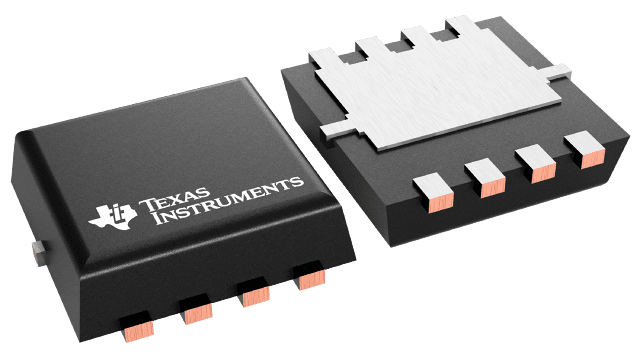

VSONP (DNH)-8-10.89 mm² 3.3 x 3.3
This 30 V, 5.5 mΩ, 3.3 mm × 3.3 mm SON NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
