CSD17510Q5A
  • CSD17510Q5A
  • CSD17510Q5A

CSD17510Q5A

ACTIVE

30-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 5.2 mOhm

Texas Instruments CSD17510Q5A Product Info

1 April 2026 0

Parameters

VDS (V)

30

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

5.2

Rds(on) at VGS=4.5 V (max) (mΩ)

7.3

VGSTH typ (typ) (V)

1.5

QG (typ) (nC)

6.4

QGD (typ) (nC)

1.9

QGS (typ) (nC)

2.7

ID - silicon limited at TC=25°C (A)

55

ID - package limited (A)

55

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 150

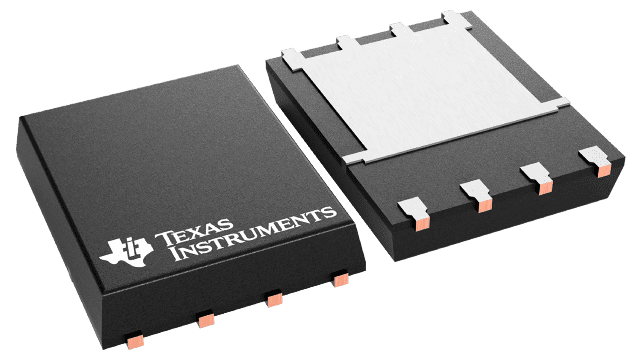

Package

VSONP (DQJ)-8-29.4 mm² 4.9 x 6

Features

  • Ultralow Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Pb free terminal plating
  • RoHS compliant
  • Halogen Free
  • SON 5mm × 6mm plastic package
  • Ultralow Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Pb free terminal plating
  • RoHS compliant
  • Halogen Free
  • SON 5mm × 6mm plastic package

Description

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
