ACTIVE
VDS (V) |
12 |
VGS (V) |
8 |
Type |
N-channel |

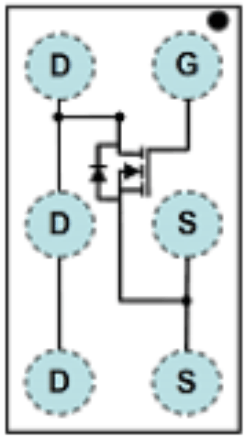

Configuration |
Single |
Rds(on) at VGS=4.5 V (max) (mΩ) |
20 |
Rds(on) at VGS=2.5 V (max) (mΩ) |
23 |
VGSTH typ (typ) (V) |
0.85 |
QG (typ) (nC) |
3.9 |
QGD (typ) (nC) |
0.4 |
QGS (typ) (nC) |
1 |
ID - silicon limited at TC=25°C (A) |
3.5 |
ID - package limited (A) |
3.5 |
Logic level |
Yes |
Rating |
Catalog |
Operating temperature range (°C) |
-55 to 150 |

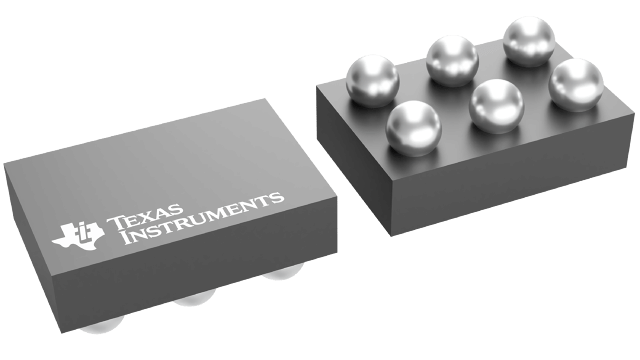

DSBGA (YZC)-6-2.1875 mm² 1.75 x 1.25
The device has been designed to deliver the lowest on resistance and gate charge in the smallest outline possible with excellent thermal characteristics in an ultra low profile.
