Texas Instruments CDCE18005 Product Info

Parameters

Number of outputs	5
Additive RMS jitter (typ) (fs)	200
Core supply voltage (V)	3.3
Output supply voltage (V)	3.3
Output skew (ps)	25
Operating temperature range (°C)	-40 to 85
Rating	Catalog
Output type	LVPECL
Input type	LVPECL

Package

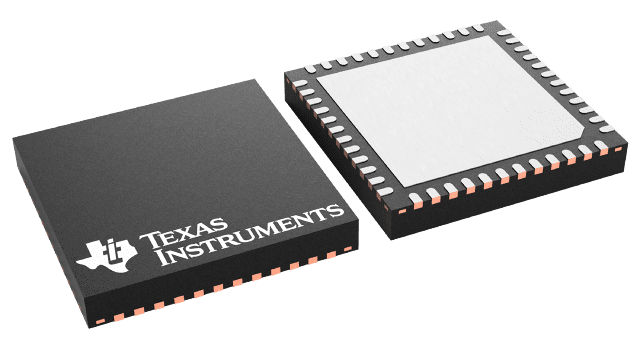

VQFN (RGZ)-48-49 mm² 7 x 7

Features

Universal Input Buffers That Accept LVPECL, LVDS, or LVCMOS Level Signaling
Fully Configurable Outputs Including Frequency, Output Format, and Output Skew
Output Multiplexer That Serves as a Clock Switch Between the Three Reference Inputs
and the Outputs
Clock Generation Via AT-Cut Crystal
Integrated EEPROM Determines Device Configuration at Power-up
Low Additive Jitter Performance
Universal Output Blocks Support up to 5 Differential, 10 Single-ended, or
Combinations of Differential or Single-ended:
- Low Additive Jitter
- Output Frequency up to 1.5 GHz
- LVPECL, LVDS, LVCMOS, and Special High Output Swing Modes
- Independent Output Dividers Support Divide Ratios from 1–80
- Independent limited Coarse Skew Control on all Outputs
Flexible Inputs:
- Two Universal Differential Inputs Accept Frequencies up to 1500 MHz (LVPECL),
  800 MHz (LVDS), or 250 MHz (LVCMOS).
- One Auxiliary Input Accepts Crystal. Auxiliary Input Accepts Crystals in the Range of
  2 MHz–42 MHz
- Clock Generator Mode Using Crystal Input.
Typical Power Consumption 1W at 3.3V
Offered in QFN-48 Package
ESD Protection Exceeds 2kV HBM
Industrial Temperature Range –40°C to 85°C

Universal Input Buffers That Accept LVPECL, LVDS, or LVCMOS Level Signaling
Fully Configurable Outputs Including Frequency, Output Format, and Output Skew
Output Multiplexer That Serves as a Clock Switch Between the Three Reference Inputs
and the Outputs
Clock Generation Via AT-Cut Crystal
Integrated EEPROM Determines Device Configuration at Power-up
Low Additive Jitter Performance
Universal Output Blocks Support up to 5 Differential, 10 Single-ended, or
Combinations of Differential or Single-ended:
- Low Additive Jitter
- Output Frequency up to 1.5 GHz
- LVPECL, LVDS, LVCMOS, and Special High Output Swing Modes
- Independent Output Dividers Support Divide Ratios from 1–80
- Independent limited Coarse Skew Control on all Outputs
Flexible Inputs:
- Two Universal Differential Inputs Accept Frequencies up to 1500 MHz (LVPECL),
  800 MHz (LVDS), or 250 MHz (LVCMOS).
- One Auxiliary Input Accepts Crystal. Auxiliary Input Accepts Crystals in the Range of
  2 MHz–42 MHz
- Clock Generator Mode Using Crystal Input.
Typical Power Consumption 1W at 3.3V
Offered in QFN-48 Package
ESD Protection Exceeds 2kV HBM
Industrial Temperature Range –40°C to 85°C

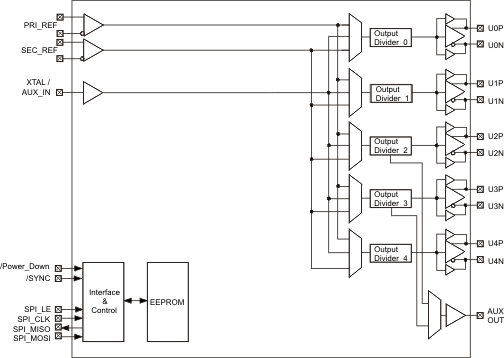

Description

The CDCE18005 is a high performance clock distributor featuring a high degree of configurability via a SPI interface, and programmable start up modes determined by on-chip EEPROM. Specifically tailored for buffering clocks for data converters and high-speed digital signals, the CDCE18005 achieves low additive jitter in the 50 fs RMS⁽¹⁾ range. The clock distribution block includes five individually programmable outputs that can be configured to provide different combinations of output formats (LVPECL, LVDS, LVCMOS). Each output can also be programmed to a unique output frequency (up to 1.5 GHz⁽²⁾
