CD74HCT32
  • CD74HCT32
  • CD74HCT32
  • CD74HCT32

CD74HCT32

ACTIVE

4-ch 2-input 4.5-V to 5.5-V OR gate with TTL-compatible inputs

Texas Instruments CD74HCT32 Product Info

1 April 2026 0

Parameters

Technology family

HCT

Supply voltage (min) (V)

4.5

Supply voltage (max) (V)

5.5

Number of channels

4

Inputs per channel

4

IOL (max) (mA)

4

IOH (max) (mA)

-4

Input type

TTL-Compatible CMOS

Output type

Push-Pull

Features

High speed (tpd 10- 50ns)

Data rate (max) (Mbps)

25

Rating

Catalog

Operating temperature range (°C)

-55 to 125

Package

PDIP (N)-14-181.42 mm² 19.3 x 9.4

Features

  • LSTTL input logic compatible
    • VIL(max) = 0.8 V, VIH(min) = 2 V
  • CMOS input logic compatible
    • II ≤ 1 µA at VOL, VOH
  • Buffered inputs
  • 4.5 V to 5.5 V operation
  • Wide operating temperature range: -55°C to +125°C
  • Supports fanout up to 10 LSTTL loads
  • Significant power reduction compared to LSTTL logic ICs
  • LSTTL input logic compatible
    • VIL(max) = 0.8 V, VIH(min) = 2 V
  • CMOS input logic compatible
    • II ≤ 1 µA at VOL, VOH
  • Buffered inputs
  • 4.5 V to 5.5 V operation
  • Wide operating temperature range: -55°C to +125°C
  • Supports fanout up to 10 LSTTL loads
  • Significant power reduction compared to LSTTL logic ICs

Description

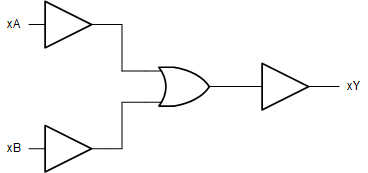

This device contains four independent 2-input OR gates. Each gate performs the Boolean function Y = A + B in positive logic.

This device contains four independent 2-input OR gates. Each gate performs the Boolean function Y = A + B in positive logic.
