Number of channels |
1 |
Total supply voltage (+5 V = 5, ±5 V = 10) (min) (V) |
2.85 |
Total supply voltage (+5 V = 5, ±5 V = 10) (max) (V) |
12.6 |
BW at Acl (MHz) |
60 |
Acl, min spec gain (V/V) |
1 |
Slew rate (typ) (V/µs) |
230 |
Architecture |
Bipolar, Fully Differential ADC Driver |
Vn at flatband (typ) (nV√Hz) |
4 |
Iq per channel (typ) (mA) |
0.78 |
Rail-to-rail |
In to V-, Out |
Vos (offset voltage at 25°C) (max) (mV) |
0.25 |
Operating temperature range (°C) |
-40 to 125 |
Iout (typ) (mA) |
27 |
2nd harmonic (dBc) |
117 |
3rd harmonic (dBc) |
124 |
Frequency of harmonic distortion measurement (MHz) |
0.1 |
GBW (typ) (MHz) |
60 |
Input bias current (max) (pA) |
600000 |
Features |
Shutdown |
CMRR (typ) (dB) |
110 |
Rating |
Catalog |

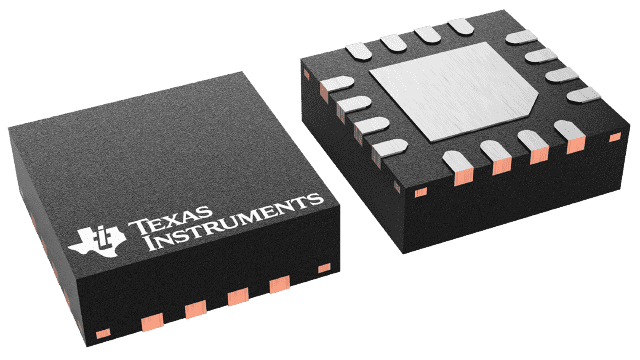

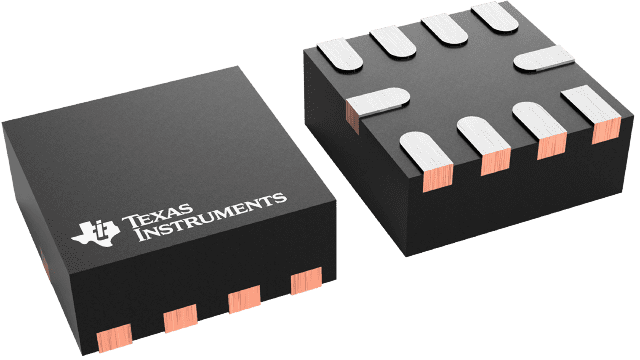

VQFN (RGT)-16-9 mm² 3 x 3

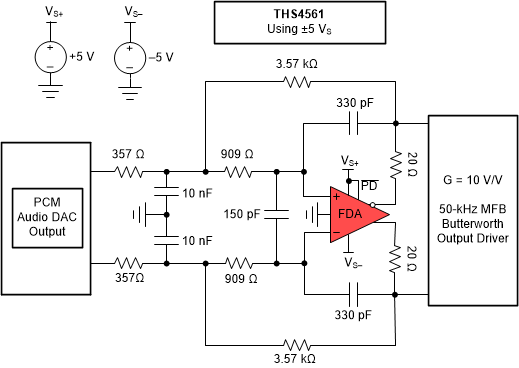

The THS4561 fully differential amplifier (FDA) offers a simple interface from single-ended sources to the differential output required by precision analog-to-digital converters (ADCs). Designed for a very low,8-Hz, 1/f voltage noise corner and low, 130-dB total harmonic distortion (THD) while consuming only a775-µA quiescent current, the THS4561 is well suited for power-sensitive data acquisition (DAQ) systems where high performance is required with the best signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR) through the amplifier and ADC combination.
The THS4561 features the required negative rail input when interfacing a DC-coupled, ground-centered, source signal to a single-supply, differential-input ADC. Low DC error and drift terms support the emerging high-speed and high-resolution successive approximation register (SAR) and delta-sigma (ΔΣ) ADC input requirements. A 2.85-V to 12.6-V supply range with a flexible output common-mode setting with low headroom to the supplies supports a wide range of ADC input and digital-to-analog converter (DAC) output requirements.
The THS4561 device is characterized for operation from –40°C to +125°C.
