BQ77216
  • BQ77216
  • BQ77216

BQ77216

ACTIVE

Voltage and temperature protection for 3-s to 16-s cell Li-ion batteries with internal delay timer

Texas Instruments BQ77216 Product Info

1 April 2026 3

Parameters

Rating

Catalog

Number of series cells (max)

16

Number of series cells (min)

3

Features

FET drive, Open wire (OW), Over-temperature (OT), Overvoltage, Stackable, Under-temperature (UT), Undervoltage

Function

Protection

Operating current (typ) (µA)

1

Vin (max) (V)

85

TI functional safety category

Functional Safety-Capable

Overvoltage protection

3.6, 3.8, 4.225, 4.25, 4.275, 4.3, 4.325, 4.35

Operating temperature range (°C)

-40 to 110

Battery overvoltage protection (min) (V)

3.55

Battery overvoltage protection (max) (V)

5.1

Package

TSSOP (PW)-24-49.92 mm² 7.8 x 6.4

Features

  • 3-series cell to 16-series cell protection
  • High-accuracy overvoltage protection
    • ± 10mV at 25°C
    • ± 20mV from 0°C to 60°C
  • Overvoltage protection options from 3.55V to 5.1V
  • Undervoltage protection with options from 1.0V to 3.5V
  • Open-wire connection detection
  • Overtemperature protection
  • Undertemperature protection
  • Random cell connection
  • Functional safety-capable
  • Fixed internal delay timers
  • Fixed detections thresholds
  • Fixed output drive type for each of COUT and DOUT
    • Active high or active low
    • Active high drive to 6V
    • Open drain with the ability to be pulled up externally to VDD
  • Low power consumption ICC ≈ 1µA (VCELL(ALL) < VOV)
  • Low leakage current per cell input < 100nA with open wire detection disabled
  • Package footprint options:
    • Leaded 24-pin TSSOP with 0.65mm lead pitch
  • 3-series cell to 16-series cell protection
  • High-accuracy overvoltage protection
    • ± 10mV at 25°C
    • ± 20mV from 0°C to 60°C
  • Overvoltage protection options from 3.55V to 5.1V
  • Undervoltage protection with options from 1.0V to 3.5V
  • Open-wire connection detection
  • Overtemperature protection
  • Undertemperature protection
  • Random cell connection
  • Functional safety-capable
  • Fixed internal delay timers
  • Fixed detections thresholds
  • Fixed output drive type for each of COUT and DOUT
    • Active high or active low
    • Active high drive to 6V
    • Open drain with the ability to be pulled up externally to VDD
  • Low power consumption ICC ≈ 1µA (VCELL(ALL) < VOV)
  • Low leakage current per cell input < 100nA with open wire detection disabled
  • Package footprint options:
    • Leaded 24-pin TSSOP with 0.65mm lead pitch

Description

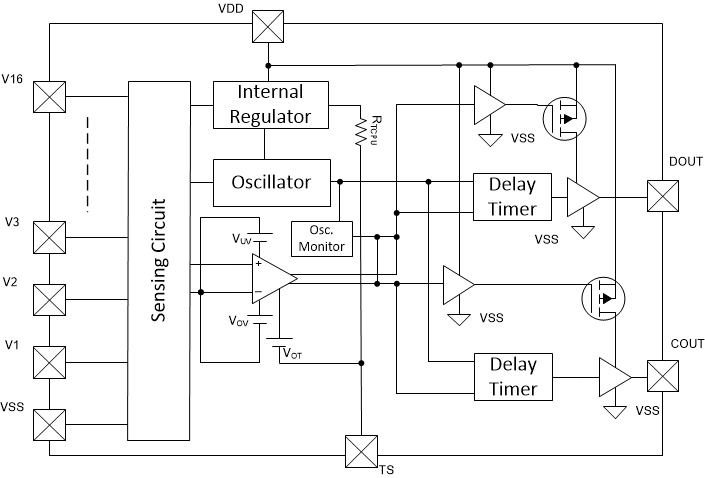

The BQ77216xx family of products provides a range of voltage and temperature monitoring, including overvoltage (OVP), undervoltage (UVP), open wire (OW), undertemperature (UT), and overtemperature (OT) protection for Li-ion battery pack systems. Each cell is monitored independently for overvoltage, undervoltage, and open-wire conditions. With the addition of an external NTC thermistor, the device can detect undertemperature and overtemperature conditions.

In the BQ77216xx device, an internal delay timer is initiated upon detection of an overvoltage, undervoltage, open-wire,undertemperature, or overtemperature condition. Upon expiration of the delay timer, the respective output is triggered into its active state (either high or low, depending on the configuration).

Overvoltage triggers the COUT pin if a fault is detected, and undervoltage triggers the DOUT pin if a fault is detected. If an overtemperature or open-wire fault is detected, then the DOUT and COUT are triggered. For quicker production-line testing, the BQ77216xx device provides a Customer Test Mode (CTM) with greatly reduced delay time.
