BQ25173
  • BQ25173
  • BQ25173

BQ25173

ACTIVE

800-mA linear charger for 1-cell to 4-cell supercapacitor

Texas Instruments BQ25173 Product Info

1 April 2026 1

Parameters

Rating

Catalog

Number of series cells

1, 2, 3, 4

Cell chemistry

SuperCap

Charge current (max) (A)

0.8

Features

IC thermal regulation, Input OVP

Vin (min) (V)

3

Vin (max) (V)

18

Absolute max Vin (max) (V)

40

Control topology

Linear

Battery charge voltage (max) (V)

10.5

Control interface

Standalone (RC-Settable)

Operating temperature range (°C)

-40 to 125

Package

WSON (DSG)-8-4 mm² 2 x 2

Features

  • Input voltage up-to 40-V tolerant
  • Automatic Sleep mode for low power consumption
    • 350-nA leakage current
    • 2-µA input leakage current when charge disabled
  • Supports 1- to 4-cell supercapacitor
  • Supports charging supercapacitor from 0 V
  • External resistor programmable operation
    • FB pin to adjust supercapacitor regulation voltage
    • ISET to set charge current from 10 mA to 800 mA
  • High accuracy
    • ±1% charge voltage accuracy
    • ±10% charge current accuracy
  • Charging features
    • CE pin for charging function control
    • Open-drain output for status and fault indication
    • Open-drain output for power-good indication
  • Integrated fault protection
    • 18-V IN overvoltage protection
    • 1000-mA overcurrent protection
    • 125°C thermal regulation; 150°C thermal shutdown protection
    • OUT short-circuit protection
    • ISET pin short/open protection
  • Input voltage up-to 40-V tolerant
  • Automatic Sleep mode for low power consumption
    • 350-nA leakage current
    • 2-µA input leakage current when charge disabled
  • Supports 1- to 4-cell supercapacitor
  • Supports charging supercapacitor from 0 V
  • External resistor programmable operation
    • FB pin to adjust supercapacitor regulation voltage
    • ISET to set charge current from 10 mA to 800 mA
  • High accuracy
    • ±1% charge voltage accuracy
    • ±10% charge current accuracy
  • Charging features
    • CE pin for charging function control
    • Open-drain output for status and fault indication
    • Open-drain output for power-good indication
  • Integrated fault protection
    • 18-V IN overvoltage protection
    • 1000-mA overcurrent protection
    • 125°C thermal regulation; 150°C thermal shutdown protection
    • OUT short-circuit protection
    • ISET pin short/open protection

Description

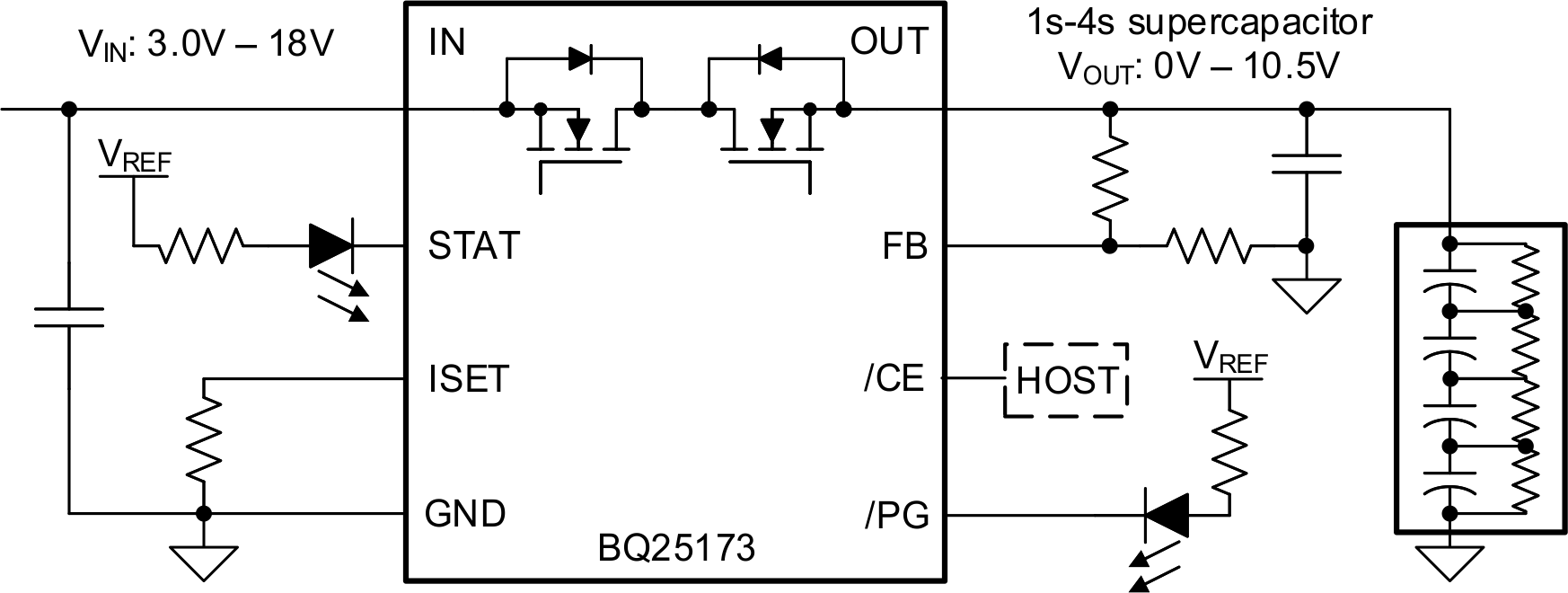

The BQ25173 is an integrated 800-mA linear charger for 1- to 4-cell supercapacitors targeted at space-limited applications. The device has a single power output that charges the supercapacitor. The system load can be placed in parallel with the supercapacitor; the charge current is shared between the system and supercapacitor.

During charging, an internal control loop monitors the IC junction temperature and reduces the charge current if the internal temperature threshold, TREG, is exceeded. This feature allows for fast charging of a fully discharged supercapacitor.

The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current and voltage regulation loops, charge status display, and charge function control. The charge voltage and fast-charge current are programmable through external resistors.

The BQ25173 is an integrated 800-mA linear charger for 1- to 4-cell supercapacitors targeted at space-limited applications. The device has a single power output that charges the supercapacitor. The system load can be placed in parallel with the supercapacitor; the charge current is shared between the system and supercapacitor.

During charging, an internal control loop monitors the IC junction temperature and reduces the charge current if the internal temperature threshold, TREG, is exceeded. This feature allows for fast charging of a fully discharged supercapacitor.

The charger power stage and charge current sense functions are fully integrated. The charger function has high accuracy current and voltage regulation loops, charge status display, and charge function control. The charge voltage and fast-charge current are programmable through external resistors.
