ACTIVE
Local sensor accuracy (max) |
0.8 |
Type |
Remote |
Operating temperature range (°C) |
-40 to 125 |
Supply voltage (min) (V) |
2.7 |
Interface type |
I2C, SMBus |
Supply voltage (max) (V) |
5.5 |
Features |
ALERT |
Supply current (max) (µA) |
5.5 |
Temp resolution (max) (bps) |
12 |
Remote channels (#) |
1 |
Addresses |
4 |
Rating |
Automotive |
SOT-23-THN (DDF)-8-8.12 mm² 2.9 x 2.8

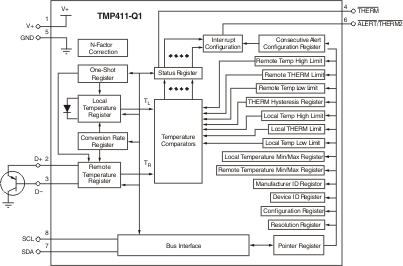

The TMP411-Q1/TMP411D-Q1 is a remote temperature sensor monitor with a built-in local temperature sensor. The remote temperature-sensor diode-connected transistors are typically low-cost, NPN- or PNP-type transistors or diodes that are an integral part of microcontrollers, microprocessors, or FPGAs.
Remote accuracy is ±1°C (TMP411-Q1) or ±0.8°C (TMP411D-Q1) for multiple IC manufacturers, with no calibration needed. The two-wire serial interface accepts SMBus write byte, read byte, send byte, and receive byte commands to program the alarm thresholds and to read temperature data.
Features included in the TMP411-Q1/TMP411D-Q1 are: series resistance cancellation, programmable non-ideality factor, programmable resolution, programmable threshold limits, minimum and maximum temperature monitors, wide remote temperature measurement range (up to 150°C), diode fault detection, and temperature alert function.

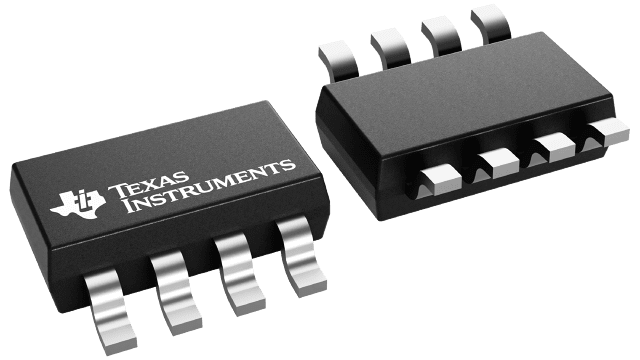

The TMP411-Q1 is available in a VSSOP-8 package, and the TMP411D-Q1 is available in an SOT23-8 package.
