AMC7823
  • AMC7823
  • AMC7823

AMC7823

ACTIVE

Integrated Multichannel ADC and DAC for Analog Monitoring and Control

Texas Instruments AMC7823 Product Info

1 April 2026 3

Parameters

Number of ADC channels

8

ADC resolution (bps)

12

Number of DAC channels

8

DAC resolution (bps)

12

Temperature sensing

Local, Remote

Number of GPIOs

6

Interface type

SPI

Features

GPIO, Temp Sensor

Operating temperature range (°C)

-40 to 85

Rating

Catalog

ADC sampling rate (ksps)

200

ADC analog input range (min) (V)

0

ADC analog input range (max) (V)

5

DAC settling time (µs)

2

DAC output full-scale (min) (V)

0

DAC output full-scale (max) (V)

5

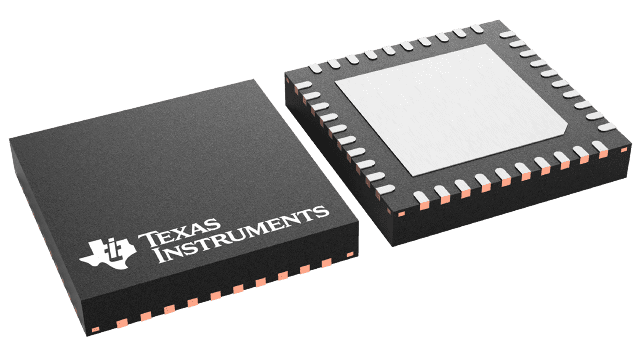

Package

WQFN (RTA)-40-36 mm² 6 x 6

Features

  • 12-Bit ADC (200kSPS):
    • Eight Analog Inputs
    • Input Range 0 to 2 × VREF
  • Programmable VREF, 1.25V or 2.5V
  • Eight 12-Bit DACs (2µs Settling Time)
  • Four Analog Input Out-of-Range Alarms
  • Six General-Purpose Digital I/O
  • Internal Bandgap Reference
  • On-Chip Temperature Sensor
  • Precision Current Source
  • SPI™ Interface, 3V or 5V Logic Compatible
  • Single 3V to 5V Supply
  • Power-Down Mode/Low Power
  • Small Package (QFN-40, 6 × 6 mm)
  • 12-Bit ADC (200kSPS):
    • Eight Analog Inputs
    • Input Range 0 to 2 × VREF
  • Programmable VREF, 1.25V or 2.5V
  • Eight 12-Bit DACs (2µs Settling Time)
  • Four Analog Input Out-of-Range Alarms
  • Six General-Purpose Digital I/O
  • Internal Bandgap Reference
  • On-Chip Temperature Sensor
  • Precision Current Source
  • SPI™ Interface, 3V or 5V Logic Compatible
  • Single 3V to 5V Supply
  • Power-Down Mode/Low Power
  • Small Package (QFN-40, 6 × 6 mm)

Description

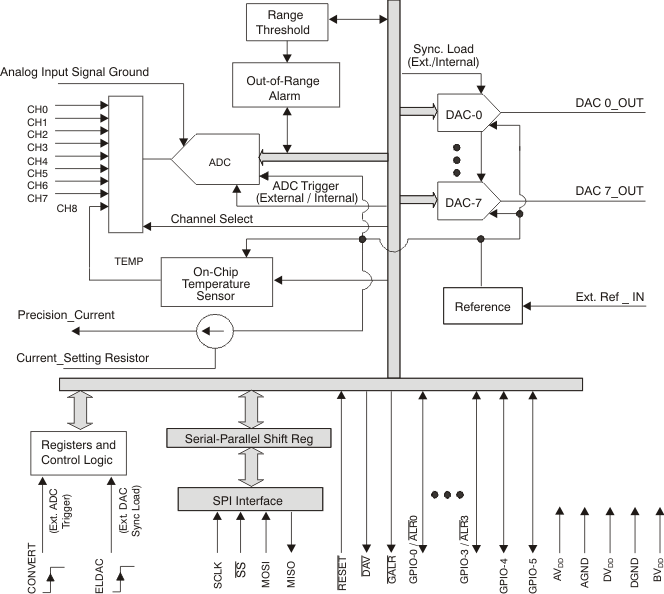

The AMC7823 is a complete analog monitoring and control circuit that includes an 8-channel, 12-bit analog-to-digital converter (ADC), eight 12-bit digital- to-analog converters (DACs), four analog input out-of-range alarms, and six GPIOs to monitor analog signals and control external devices. Also, the AMC7823 has an internal sensor to monitor chip temperature, and a precision current source to drive remote thermistors, or RTDs, to monitor remote temperatures.
