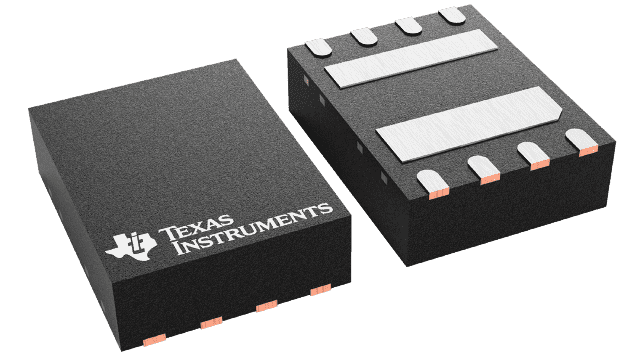

AMC21C12

ACTIVE

High-speed functionally isolated window comparator with internal reference

Texas Instruments AMC21C12 Product Info

1 April 2026 3

Parameters

Number of channels

1

Output type

Open-drain

Propagation delay time (µs)

0.28

CMTI (min) (kV/µs)

55

Rating

Catalog

Operating temperature range (°C)

-40 to 125

Isolation rating

Functional

Transient isolation voltage (VIOTM) (VPK)

570

Working isolation voltage (VIOWM) (Vrms)

200

Creepage (min) (mm)

1

Clearance (min) (mm)

1

Package

VSON (DEN)-8-9.45 mm² 3.5 x 2.7

Features

  • Wide high-side supply range: 3 V to 27 V
  • Low-side supply range: 2.7 V to 5.5 V
  • Adjustable threshold:
    • Window-comparator mode: ±20 mV to ±300 mV
    • Positive-comparator mode: 600 mV to 2.7 V
  • Reference for threshold adjustment: 100 µA, ±1%
  • Trip threshold error: ±1% (max) at 250 mV
  • Open-drain output with optional latch mode
  • Propagation delay: 280 ns (typ)
  • High CMTI: 55 V/ns (min)
  • Functional Isolation:
    • Working voltage: 200 VRMS, 280 VDC
    • Transient overvoltage (60 s): 570 VRMS, 800 VDC
  • Small, 0.65-mm pitch, leadless package with 1-mm creepage and clearance
  • Fully specified over the extended industrial temperature range: –40°C to +125°C
  • Wide high-side supply range: 3 V to 27 V
  • Low-side supply range: 2.7 V to 5.5 V
  • Adjustable threshold:
    • Window-comparator mode: ±20 mV to ±300 mV
    • Positive-comparator mode: 600 mV to 2.7 V
  • Reference for threshold adjustment: 100 µA, ±1%
  • Trip threshold error: ±1% (max) at 250 mV
  • Open-drain output with optional latch mode
  • Propagation delay: 280 ns (typ)
  • High CMTI: 55 V/ns (min)
  • Functional Isolation:
    • Working voltage: 200 VRMS, 280 VDC
    • Transient overvoltage (60 s): 570 VRMS, 800 VDC
  • Small, 0.65-mm pitch, leadless package with 1-mm creepage and clearance
  • Fully specified over the extended industrial temperature range: –40°C to +125°C

Description

The AMC21C12 is an isolated window comparator with a short response time. The open-drain output is galvanically isolated from the input circuitry by an isolation barrier that is highly resistant to magnetic interference. The isolation barrier supports a working voltage up to 200 VRMS or 280 VDC and transient over voltages of up to 570 VRMS or 800 VDC.

The comparison window is centered at 0 V, meaning that the comparator trips if the absolute value of the input voltage exceeds the trip threshold value. The trip threshold is adjustable from 20 mV to 300 mV through a single external resistor and, therefore, the comparison window ranges from ±20 mV to ±300 mV. When the voltage on the REF pin is greater than 550 mV, the negative comparator is disabled and only the positive comparator is functional. The reference voltage in this mode can be as high as 2.7 V. This mode is particularly useful for monitoring voltage supplies.

The open-drain output on the device supports transparent mode (LATCH input tied to GND2) where the output follows the input state, or latch mode, where the output is cleared on the falling edge of the latch input signal.

The AMC21C12 is available in an 8-pin, 0.65-mm pitch VSON package and is specified over the extended industrial temperature range of –40°C to +125°C.
