AMC0136
  • AMC0136

AMC0136

ACTIVE

Precision, ±1V input, functional isolated delta-sigma modulator with external clock

Texas Instruments AMC0136 Product Info

1 April 2026 3

Parameters

Device type

Voltage sensing

Peak-to-peak input voltage range (V)

1V

Interface type

Serial CMOS

Rating

Catalog

CMTI (min) (kV/µs)

150

Number of input channels

1

Architecture

Delta-Sigma

SNR (dB)

87

Operating temperature range (°C)

-40 to 125

Isolation rating

Functional

Working isolation voltage (VIOWM) (Vrms)

200

Transient isolation voltage (VIOTM) (VPK)

570

Creepage (min) (mm)

1

Clearance (min) (mm)

1

Package

VSON (DEN)-8-9.45 mm² 3.5 x 2.7

Features

  • Linear input voltage range: ±1V
  • High input impedance: 1GΩ (typical)
  • Supply voltage range:
    • High-side (AVDD): 3.0V to 5.5V
    • Low-side (DVDD): 2.7V to 5.5V
  • Low DC errors:
    • Offset error: ±0.9mV (maximum)
    • Offset drift: 8.5µV/°C (maximum)
    • Gain error: ±0.25% (maximum)
    • Gain drift: ±35ppm/°C (maximum)
  • High CMTI: 150V/ns (minimum)
  • Missing high-side supply detection
  • Low EMI: Meets CISPR-11 and CISPR-25 standards
  • Functional Isolation:
    • 200VRMS, 280VDC working voltage
    • 570VRMS, 800VDC transient overvoltage (60s)
  • Safety-related certifications:
    • DIN EN IEC 60747-17 (VDE 0884-17)
    • UL1577
  • Fully specified over the extended industrial temperature range: –40°C to +125°C
  • Linear input voltage range: ±1V
  • High input impedance: 1GΩ (typical)
  • Supply voltage range:
    • High-side (AVDD): 3.0V to 5.5V
    • Low-side (DVDD): 2.7V to 5.5V
  • Low DC errors:
    • Offset error: ±0.9mV (maximum)
    • Offset drift: 8.5µV/°C (maximum)
    • Gain error: ±0.25% (maximum)
    • Gain drift: ±35ppm/°C (maximum)
  • High CMTI: 150V/ns (minimum)
  • Missing high-side supply detection
  • Low EMI: Meets CISPR-11 and CISPR-25 standards
  • Functional Isolation:
    • 200VRMS, 280VDC working voltage
    • 570VRMS, 800VDC transient overvoltage (60s)
  • Safety-related certifications:
    • DIN EN IEC 60747-17 (VDE 0884-17)
    • UL1577
  • Fully specified over the extended industrial temperature range: –40°C to +125°C

Description

The AMC0136 is a precision, galvanically isolated delta-sigma (ΔΣ) modulator with a ±1V, high impedance input and external clock. The high-impedance input is optimized for connection to high-impedance resistive dividers or other voltage signal sources with high output resistance.

The isolation barrier separates parts of the system that operate on different common-mode voltage levels. The isolation barrier supports a working voltage up to 200VRMS / 280VDC and transient overvoltages up to 570VRMS / 800VDC.

With a small package size and high input impedance, the AMC0136 is designed for high accuracy, isolated voltage sensing in space-constrained applications.

The output bitstream of the AMC0136 is synchronized to an external clock. Combined with a sinc3, OSR 256 filter, the device achieves 14.8 effective bits of resolution or 89dB of dynamic range, at a sample rate of 39kSPS.

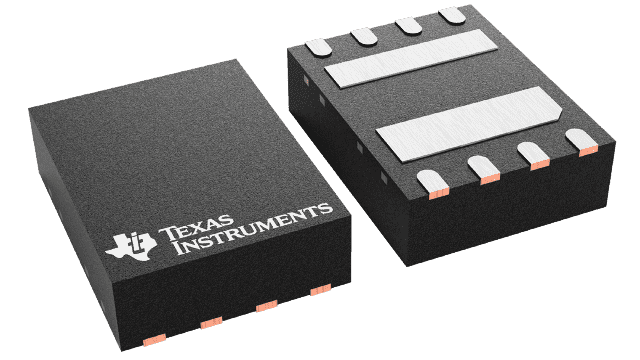

The AMC0136 is available in a 8-pin, 0.65mm pitch VSON package and is fully specified over the temperature range from –40°C to +125°C.
