ACTIVE
Resolution (Bits) |
18 |
Sample rate (max) (ksps) |
20000 |
Number of input channels |
2 |
Interface type |
Serial LVDS |
Architecture |
SAR |
Input type |
Differential |
Multichannel configuration |
Simultaneous Sampling |
Rating |
Catalog |
Reference mode |
External, Internal |
Input voltage range (max) (V) |
4.1 |
Input voltage range (min) (V) |
0.7 |
Operating temperature range (°C) |
-40 to 125 |
Power consumption (typ) (mW) |
360 |
Analog supply voltage (min) (V) |
4.75 |
Analog supply voltage (max) (V) |
5.25 |
SNR (dB) |
94 |
Digital supply (min) (V) |
1.75 |
Digital supply (max) (V) |
1.85 |

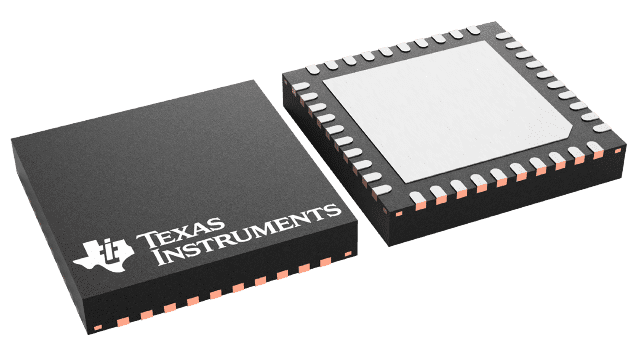

VQFN (RHA)-40-36 mm² 6 x 6
The ADS921x is a family of 18-bit, high-speed, dual-channel, simultaneous-sampling, analog-to-digital converters (ADCs) with an integrated driver for the ADC inputs. The integrated ADC driver simplifies the signal chain, reduces power consumption for precision applications, and supports high-frequency signals beyond 1MHz. By not requiring an external decoupling capacitor, the integrated ADC reference buffer is optimized for wide bandwidth applications.
The ADS921x uses a serial LVDS (SLVDS) data interface that enables high-speed digital communication while minimizing digital switching noise. Read the dual-channel ADC data using separate SLVDS outputs per ADC channel or one SLVDS output for both ADC channels.
